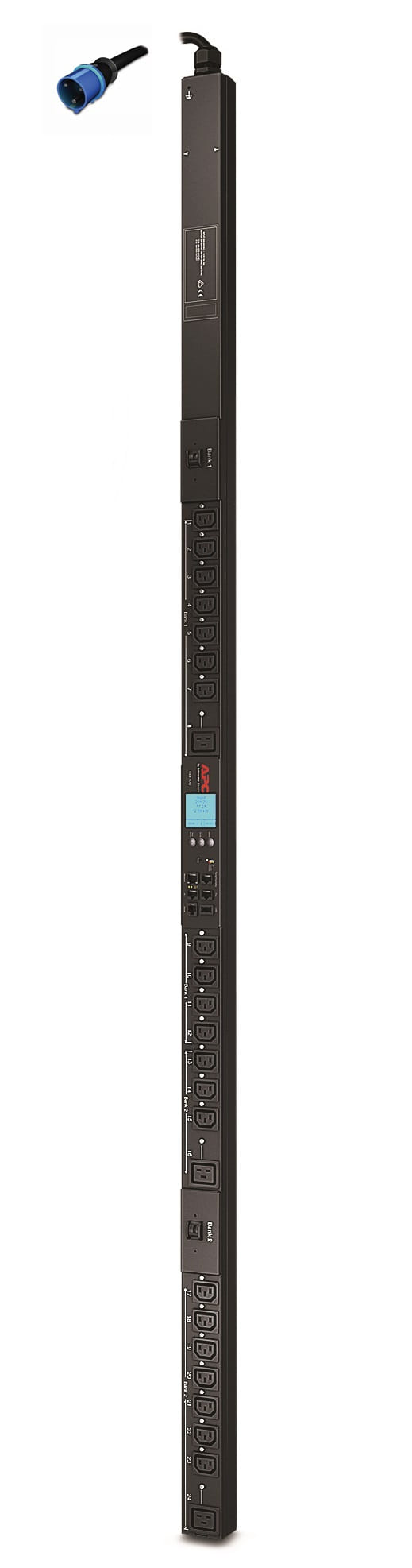

APC AP8953; PDU types: Metered,Switched, Rack capacity: 0U, Product colour: Black; AC outlets quantity: 24 AC outlet(s), Input connection type: IEC 309 32A 2P+E, Output connections: (21) IEC 320 C13, (3) IEC 320 C19; Cable length: 3.05 m; AC input frequency: 50 - 60 Hz, Maximum input current per phase: 32 A, Maximum total current draw per phase: 32 A; Dimensions (WxDxH): 56 x 46 x 1829 mm, Weight: 7.59 kg
APC Switched Rack PDU , Input: 200V, 208V, 230V , Input Connections: IEC 309 32A 2P+E , Cord Length: 10 feet ( 3.05 meters ) , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered,Switched |
| Rack capacity The spase that device fill in rack. | 0U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | IEC 309 32A 2P+E |
| Output connections | (21) IEC 320 C13, (3) IEC 320 C19 |
| Features | |
| Cable length How long the cable is. | 3.05 m |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 200 - 230 |
| AC input frequency | 50 - 60 Hz |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 56 x 46 x 1829 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.59 kg |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 165 x 124 x 2040 mm |
| Package weight Weight of the packaged product. | 9.95 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -25 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 413959 |
| MPN | AP8953 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
