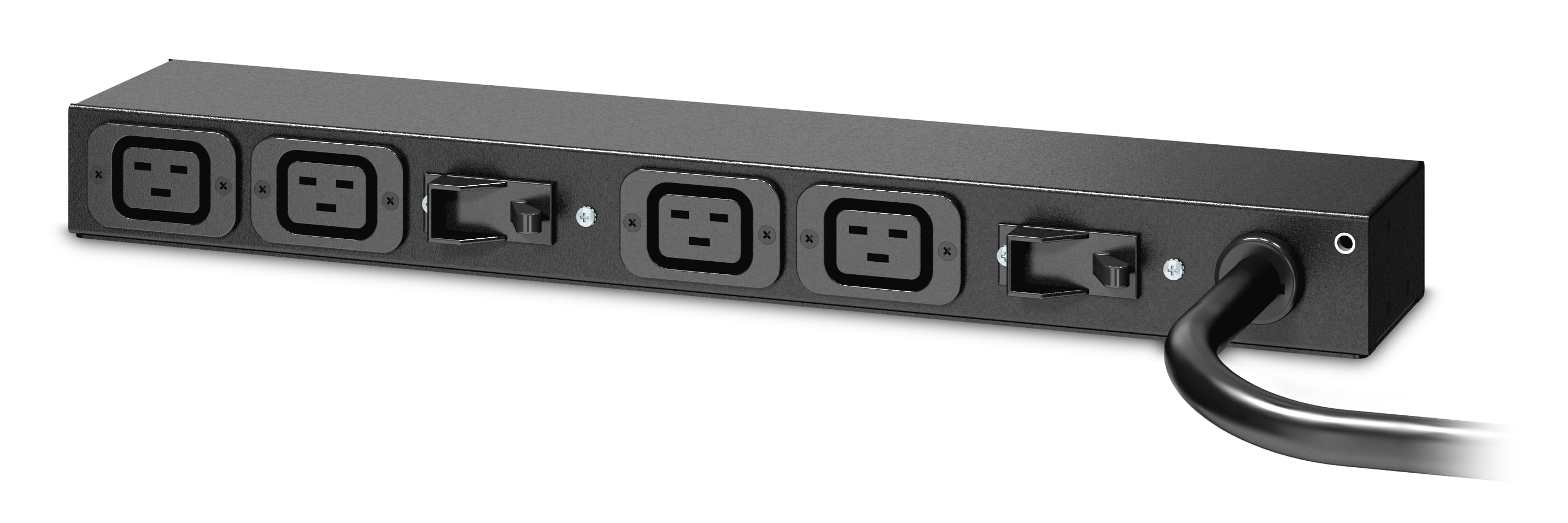

APC AP6032A, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 4 AC outlet(s)
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Type Characteristics of the device. | Single-phase |
| Rack capacity The spase that device fill in rack. | 0U/1U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 4 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 60309 |
| AC outlet types The type of outlet for AC electricity. | C19 coupler |
| Features | |
| Cable length How long the cable is. | 3.65 m |
| Certification | VDE, CE |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 200-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 32 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 200-240 V |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum power The maximum power that can be put into or produced by the device. | 7680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 4.36 x 9.29 x 43.81 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.78 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
