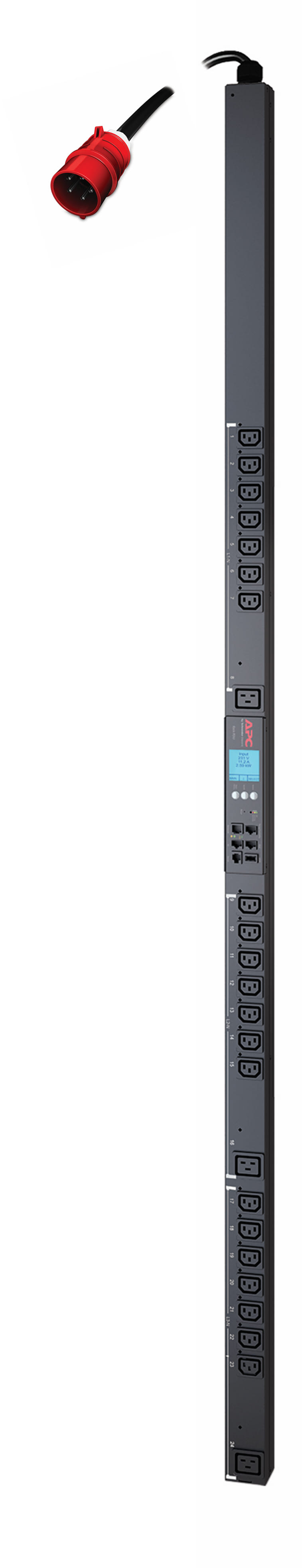

APC AP8681, Metered, Switched, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered, Switched |
| Rack capacity The spase that device fill in rack. | 0U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Features | |
| Cable length How long the cable is. | 1.83 m |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE |
| Management features | |
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 400 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 16 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Load capacity | 11040 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power The maximum power that can be put into or produced by the device. | 11040 W |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 56 x 51 x 1829 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.23 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 162 x 117 x 2038 mm |
| Package weight Weight of the packaged product. | 10.5 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 601055 |
| MPN | AP8681 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
| Stock Availability | Available for Shipping |
