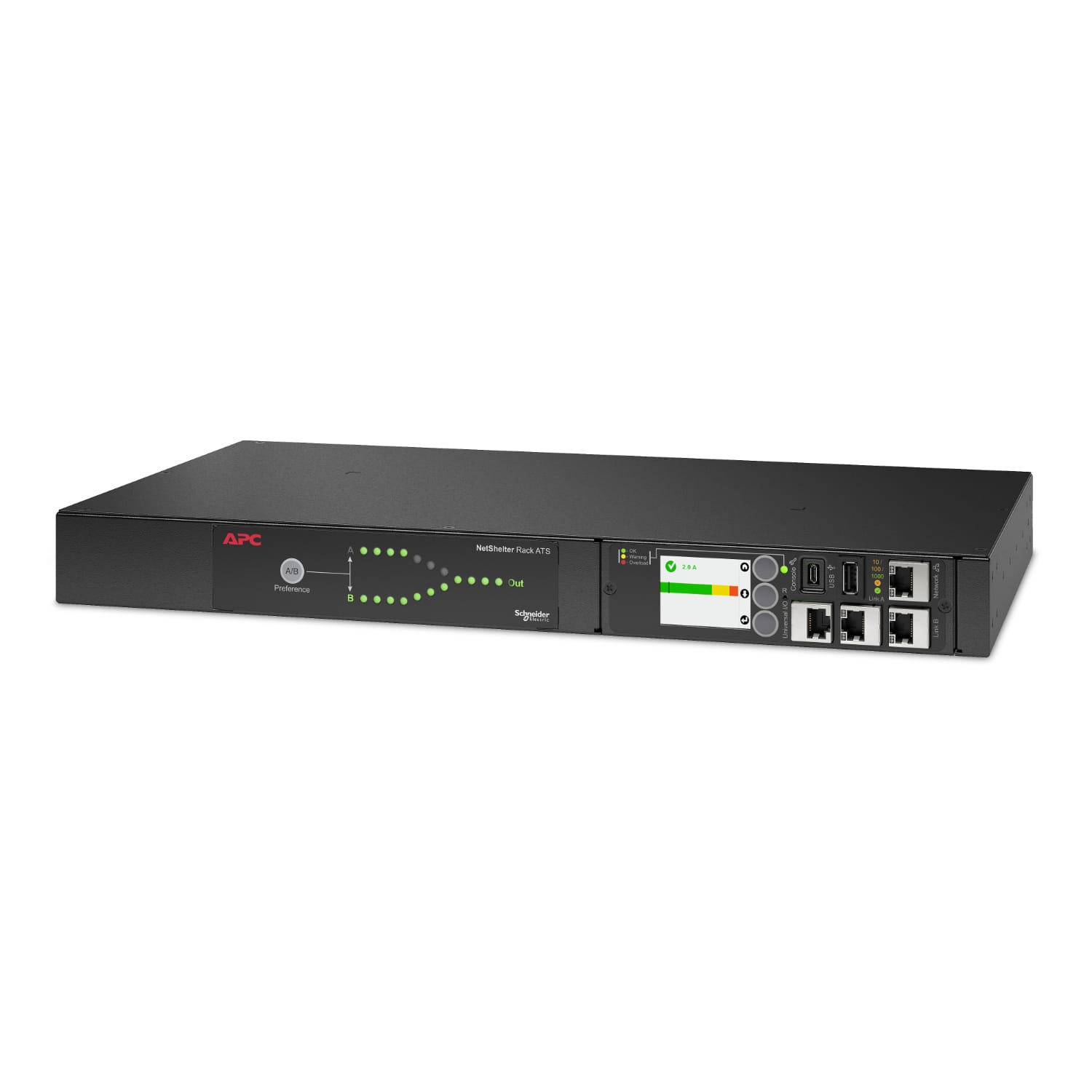

APC Netshelter Rack Automatic Transfer Switch, 1U, 12A, 208V , C14 IN, 12 C13 OUT, 50/60Hz, Rackmount, 1U, 12 AC outlet(s), Black
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4433A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4433A is single phase 1U Rack ATS with 12A rated current, 208V rated voltage and 3300VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
| Power | |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 187 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 228 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 A |
| Output operation voltage (max) The maximum output voltage produced by the device. | 208 V |
| Output current | 12 A |
| Performance | |
| LED indicators |
 |
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | RoHS, WEEE, REACH |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 12 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Doesn't contain | Mercury |
| Total carbon footprint (kg of CO2e) The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e. | 432.72 |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS, WEEE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 432 mm |
| Depth The distance from the front to the back of something. | 236 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.74 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 600 mm |
| Package depth The distance from the front to the back of the packaging. | 356 mm |
| Package height The distance from the top to the bottom of the packaging. | 114 mm |
| Package weight Weight of the packaged product. | 5.51 kg |
| SKU | 826291 |
| MPN | AP4433A |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
