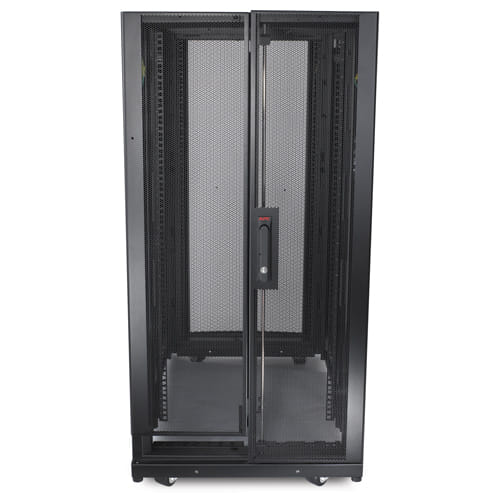

APC NetShelter SX 24U 600mm x 1070mm Deep Enclosure; Rack capacity: 24U, Type: Freestanding rack, Maximum weight capacity: 1363.64 kg; Size (imperial): 48.3 cm (19"), Width: 600 mm, Depth: 1070 mm; Package weight: 106.8 kg; Package dimensions (WxDxH): 899 x 1219 x 1350 mm
Rack enclosures with advanced cooling, power distribution, and cable management for server and networking applications in IT environments.
Includes: Casters, Doors, Key(s), Leveling feet, Roof, Side Panels, User Manual.
Includes: Casters, Doors, Key(s), Leveling feet, Roof, Side Panels, User Manual.
| Features | |
| Rack capacity The spase that device fill in rack. | 24U |
| Type Characteristics of the device. | Freestanding rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 1363.64 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Certification | EIA-310-D |
| Weight & dimensions | |
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| Width The measurement or extent of something from side to side. | 600 mm |
| Depth The distance from the front to the back of something. | 1070 mm |
| Height The measurement of the product from head to foot or from base to top. | 1198 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 89.1 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 91.5 cm |
| Packaging data | |
| Package weight Weight of the packaged product. | 106.8 kg |
| Other features | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 899 x 1219 x 1350 mm |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). | 24U |
| SKU | 414127 |
| MPN | AR3104 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
