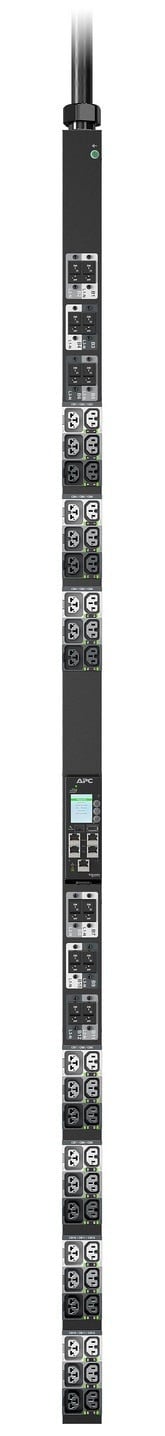

APC Netshelter Advanced Gen2 42-Port 3 Phase Power Distribution Unit
Item No:
844010
MPN:
APDU11450SW
$10,615.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
21x C13/C15/C19/C21 Outlets, 21x C13/C15 Outlets; 1x IEC 60309 60 Amp 3 Phase Input
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered |
| Type Characteristics of the device. | Three-phase |
| Rack capacity The spase that device fill in rack. | 0U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 42 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 5 |
| USB ports quantity | 1 |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | IEC 60309 60 A 3P + N + PE |
| Features | |
| Cable length How long the cable is. | 3 m |
| Management features | |
| Management platform | NMC3 |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 415 3 phases |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 60 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 400 V |
| Output voltage | 240 V |
| Load capacity | 34600 VA |
| Number of phases | 3 |
| Battery replacement accessibility Indicates whether a battery is removable and replaceable by the end-user, by an independent professional only, or non-removable. | Non-removable |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
 |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS, REACH, WEEE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 56 mm |
| Depth The distance from the front to the back of something. | 75 mm |
| Height The measurement of the product from head to foot or from base to top. | 1826 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12.4 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 17 kg |
| Package width The distance from one side of the packaging to the other. | 132 mm |
| Package depth The distance from the front to the back of the packaging. | 262 mm |
| Package height The distance from the top to the bottom of the packaging. | 2110 mm |
| Technical details | |
| Sustainable packaging |
 |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Removable battery |
|
| Preferred mounting position | no preference |
| Take-back system Take-back system allow consumers to return used products to manufacturers or retailers for reuse, recycling, or responsible disposal. |
|
| Packaging without single use plastic |
|
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | United States |
| Customs product code (TARIC) | 8537109899 |
| SKU | 844010 |
| MPN | APDU11450SW |
| Brand | APC |
| Product Condition | Brand New/Unused |
| PSU Form Factor | N/A |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
