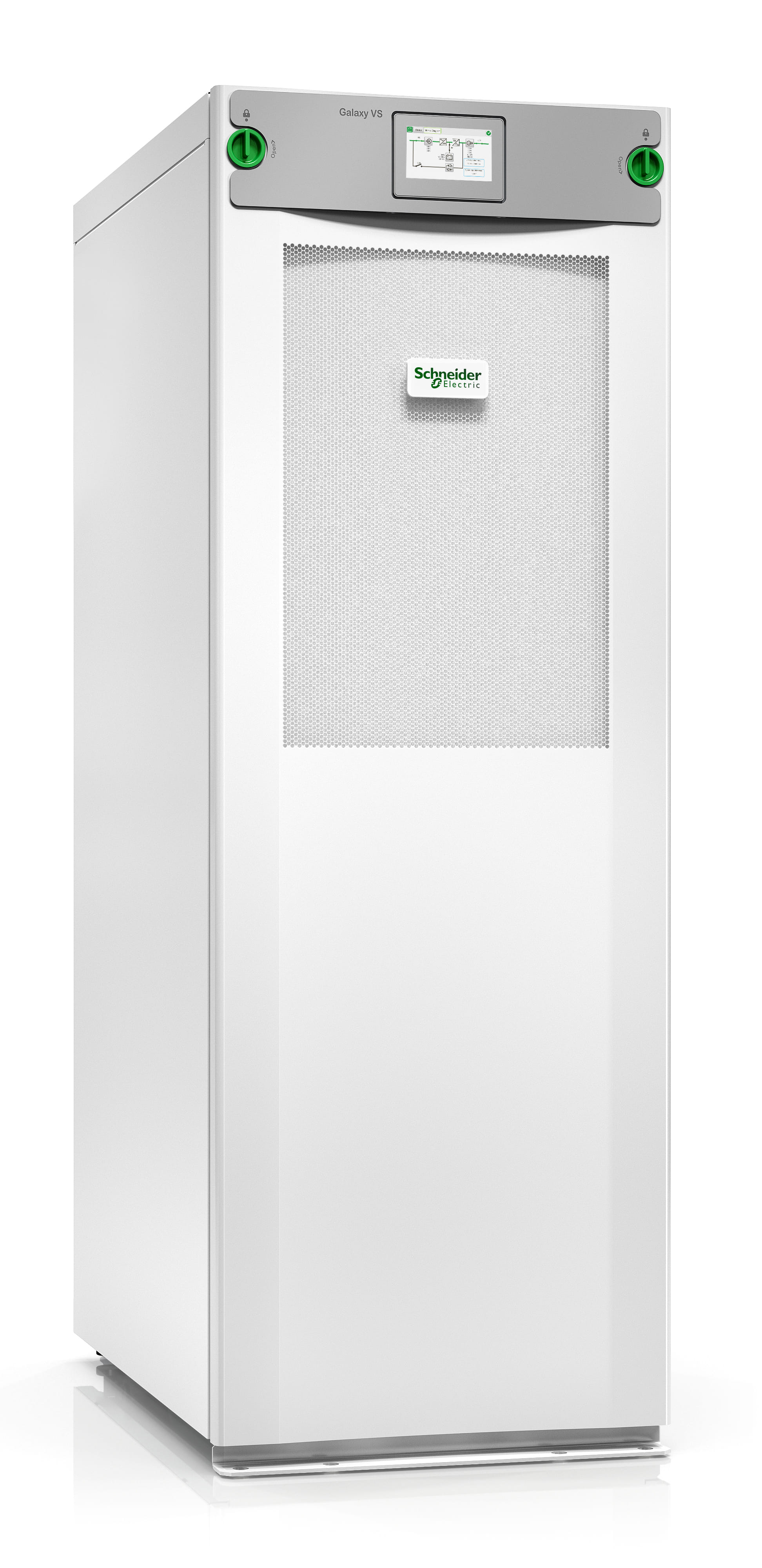

APC Galaxy VS UPS 20kW 400V for External Batteries
Item No:
806047
MPN:
GVSUPS20KHS
$23,500.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
APC GVSUPS20KHS, Double-conversion (Online), 20 kVA, 20000 W, Sine, 340 V, 460 V
Highly efficient, easy-to-deploy 20kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 20 kVA |
| Output power The power that the device can produce. | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 340 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 460 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 380 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 37 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 96.9% |
| Input power factor | 0.99 |
| Crest factor | 2.5:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 65 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
 |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP21 |
| Certification | CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 521 mm |
| Depth The distance from the front to the back of something. | 847 mm |
| Height The measurement of the product from head to foot or from base to top. | 1485 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 210 kg |
| Package width The distance from one side of the packaging to the other. | 640 mm |
| Package depth The distance from the front to the back of the packaging. | 990 mm |
| Package height The distance from the top to the bottom of the packaging. | 1680 mm |
| Package weight Weight of the packaged product. | 235 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | 4-wire (3PH + G), 5-wire (3PH + N + G) |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 400 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 400 V |
| SKU | 806047 |
| MPN | GVSUPS20KHS |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
