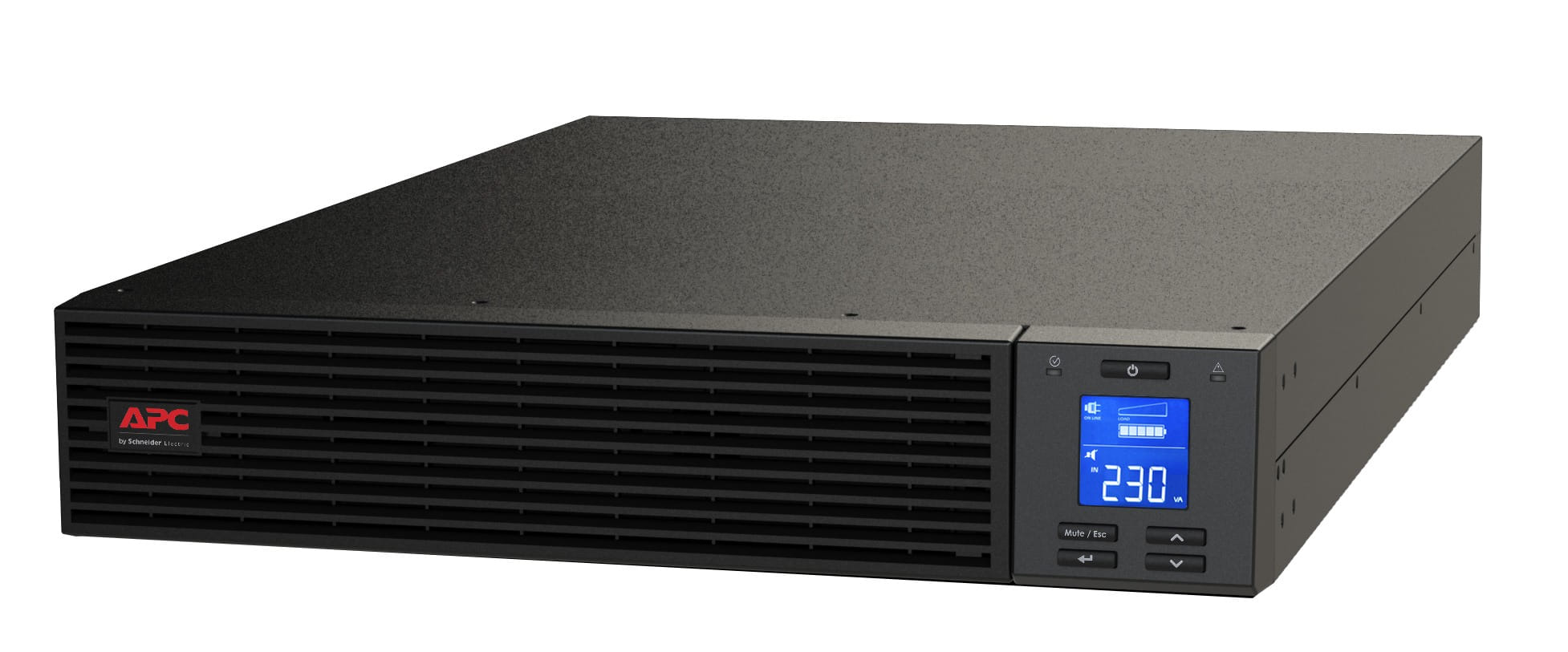

APC SRVPM6KRIL, Double-conversion (Online), 6 kVA, 6000 W, Pure sine, 40/70 Hz, 220 V
APC Easy UPS On-Line SRV RM Extended Runtime 6000VA 230V No Battery
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditionsHigh quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, USB cable, User Manual.
Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditionsHigh quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, USB cable, User Manual.
Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity: Provides management of the UPS via a serial port.
USB connectivity: Provides management of the UPS via a USB port (not available on all models).
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 6 kVA |
| Output power The power that the device can produce. | 6000 W |
| Waveform | Pure sine |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 600 J |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart |
|
| Maintenance-free |
|
| Ports & interfaces | |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | Terminal |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Emergency Power Off (EPO) connector |
|
| SmartSlot |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Automatic battery test |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 615 mm |
| Height The measurement of the product from head to foot or from base to top. | 87 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 14 kg |
| Package width The distance from one side of the packaging to the other. | 600 mm |
| Package depth The distance from the front to the back of the packaging. | 760 mm |
| Package height The distance from the top to the bottom of the packaging. | 240 mm |
| Package weight Weight of the packaged product. | 18 kg |
| Packaging data | |
| Cables included | USB cable |
| Manual |
|
| Software CD |
|
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| SKU | 775712 |
| MPN | SRVPM6KRIL |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
