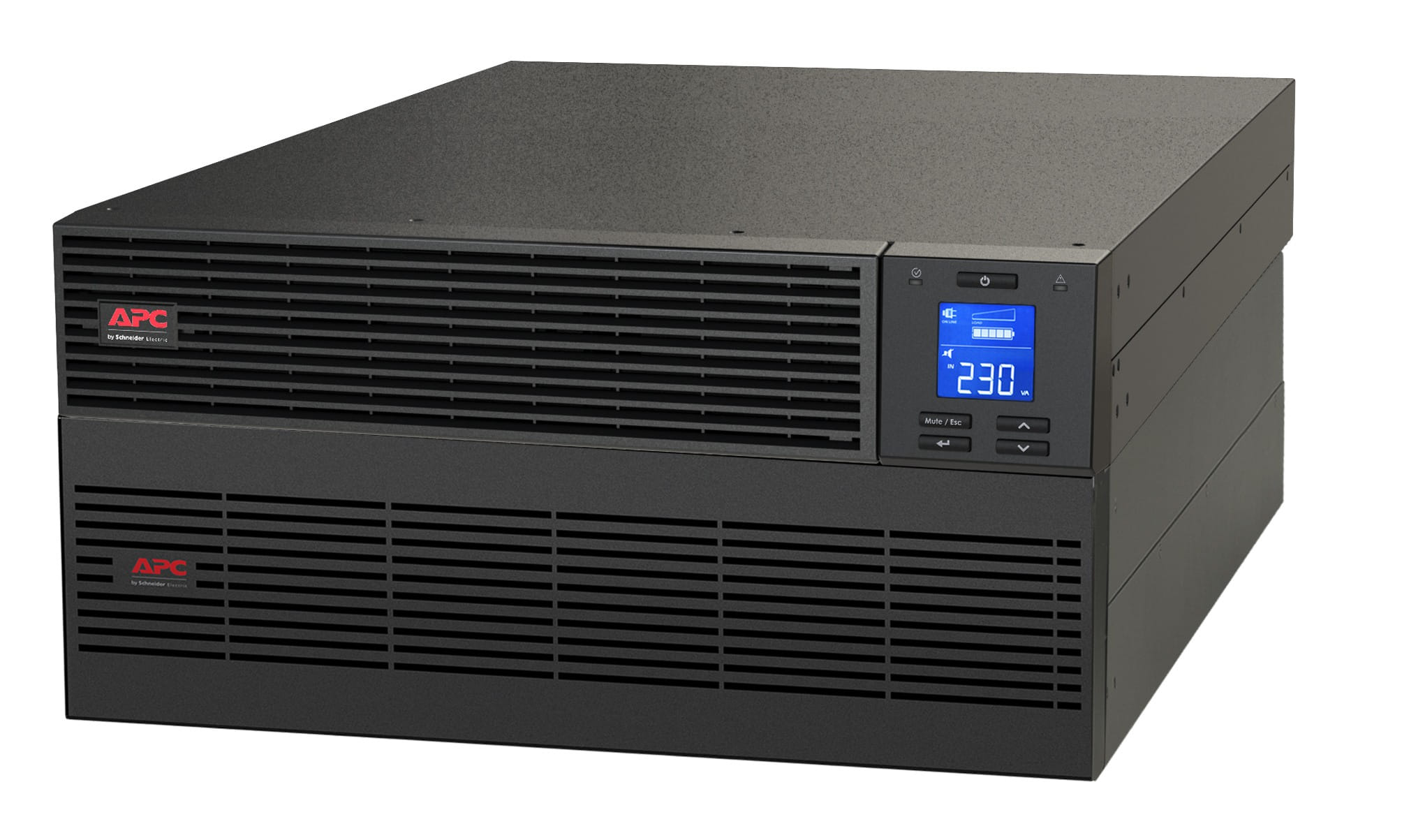

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kits sold separately. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 6 kVA |
| Output power The power that the device can produce. | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 220 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 600 J |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Auto-restart |
|
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Serial interface |
|
| SmartSlot |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Automatic battery test |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
| Certificates | |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2 REACH |
| Packaging content | |
| Cables included | USB cable |
| Manual |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 710 mm |
| Height The measurement of the product from head to foot or from base to top. | 173 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 61 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 71 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| SKU | 814129 |
| MPN | SRV6KRIL |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
