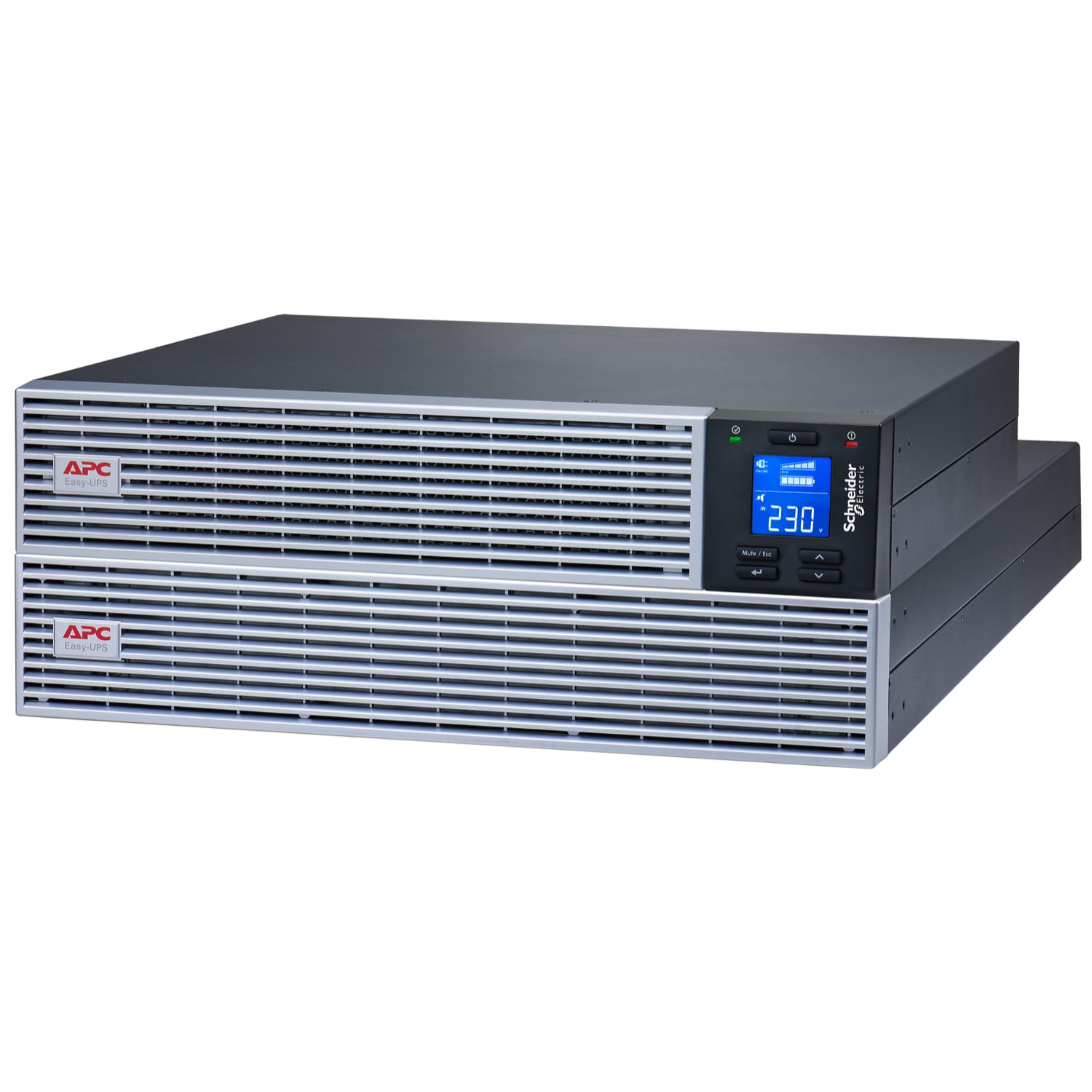

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 3 kVA |
| Output power The power that the device can produce. | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 110 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 945 J |
| Efficiency | 90% |
| Crest factor | 3:1 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 50 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Low battery alarm, Overload alarm |
| Power source type What the power source is. | AC |
| Detachable power cord |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 7 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery voltage The voltage (V) of the battery. | 48 V |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 45 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 88 min |
| Battery life (max) | 10 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 4.8 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 4U |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | CE, RoHS, UKCA |
| Certification | CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3, RoHS |
| Packaging content | |
| Rack mount kit |
|
| Cables included | Phone (RJ-11), Power load cable, RJ-45, RS-232, USB cable |
| Manual |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 616 mm |
| Height The measurement of the product from head to foot or from base to top. | 172 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 38.3 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 800 mm |
| Package depth The distance from the front to the back of the packaging. | 600 mm |
| Package height The distance from the top to the bottom of the packaging. | 480 mm |
| Package weight Weight of the packaged product. | 50.6 kg |
| SKU | 814132 |
| MPN | SRVL3KRILRK |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
