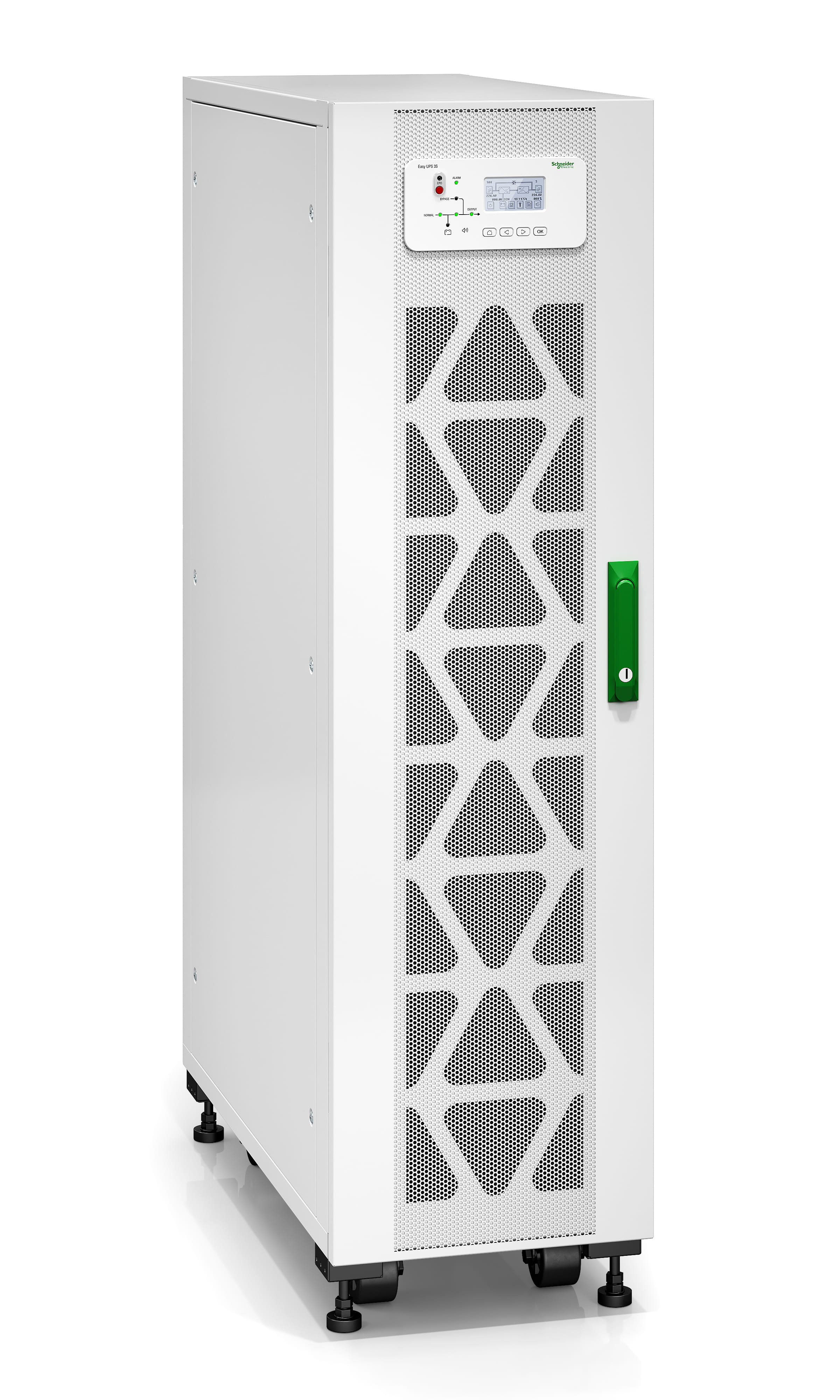

APC Easy UPS 3S 20kVA 400V 3:3 3 Internal 7Ah Modular Battery Strings
Item No:
808625
MPN:
E3SUPS20KHB2
$131,999.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 20 kVA |
| Output power The power that the device can produce. | 20000 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 304 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 477 V |
| Input frequency The frequency (Hz) which is required to power the product. | 45/65 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 380 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 37 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 60 dB |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery voltage The voltage (V) of the battery. | 240 V |
| Number of batteries supported The number of batteries that can be used with the product. | 3 |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 30 min |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Display type Type of display (screen) e.g. LCD. | LED |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 380 mm |
| Depth The distance from the front to the back of something. | 928 mm |
| Height The measurement of the product from head to foot or from base to top. | 1400 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 446 kg |
| Package width The distance from one side of the packaging to the other. | 563 mm |
| Package depth The distance from the front to the back of the packaging. | 1014 mm |
| Package height The distance from the top to the bottom of the packaging. | 1640 mm |
| Package weight Weight of the packaged product. | 494 kg |
| Packaging data | |
| Quick installation guide |
 |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 400 V |
| SKU | 808625 |
| MPN | E3SUPS20KHB2 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
