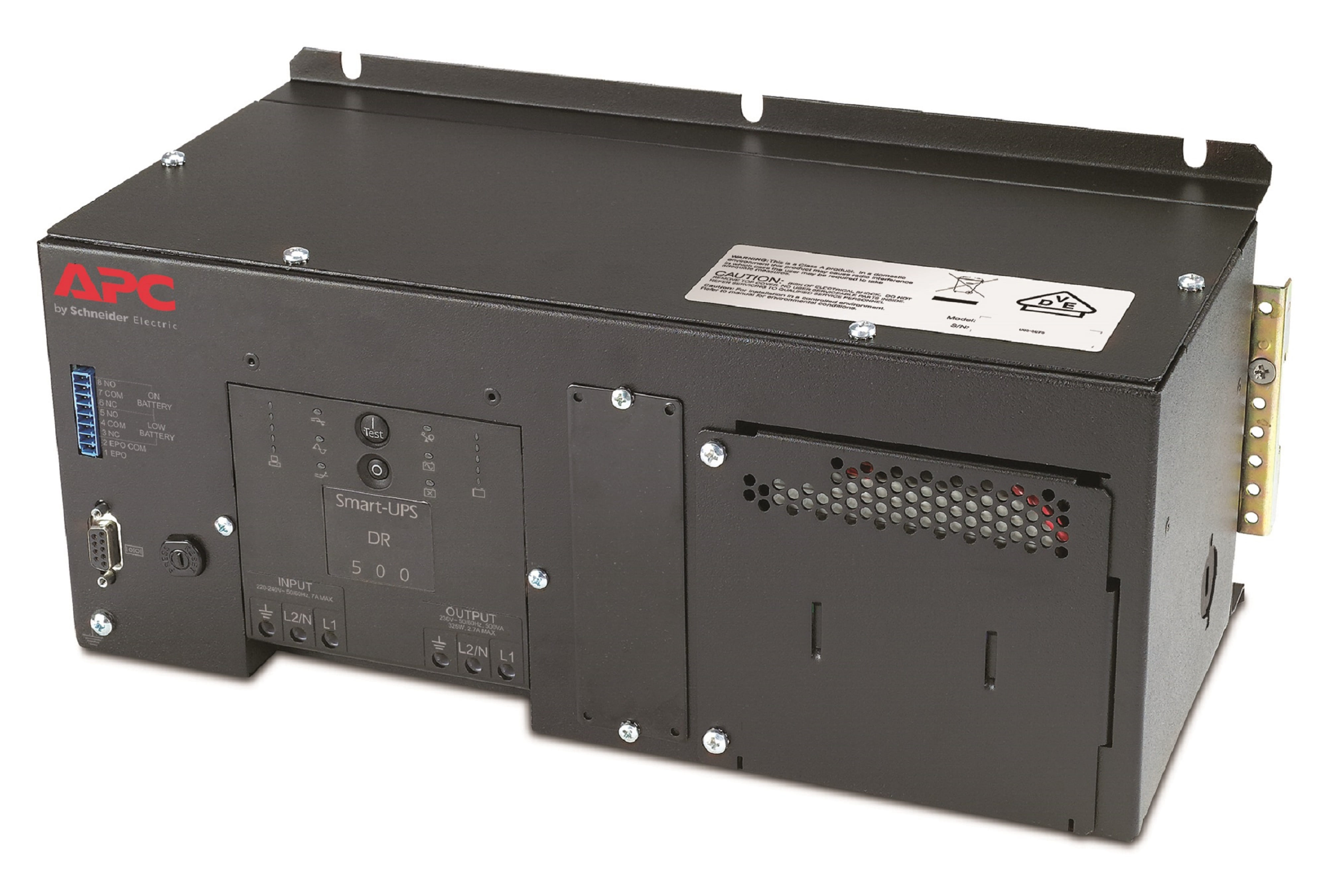

APC SUA500PDRI H, 0.5 kVA, 325 W, 151 V, 302 V, 47/63 Hz, 220 V
APC SUA500PDRI H. Output power capacity: 0.5 kVA, Output power: 325 W, Input operation voltage (min): 151 V. AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 8 min, Typical backup time at half load: 24 min. Product colour: Black. Width: 362 mm, Depth: 171 mm, Height: 148 mm
| Features | |
| Output power capacity The maximum power that the device can produce. | 0.5 kVA |
| Output power The power that the device can produce. | 325 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 151 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 302 V |
| Input frequency The frequency (Hz) which is required to power the product. | 47/63 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 540 J |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 3 AC outlet(s) |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Number of batteries supported The number of batteries that can be used with the product. | 1 |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 8 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 24 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 2 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 362 mm |
| Depth The distance from the front to the back of something. | 171 mm |
| Height The measurement of the product from head to foot or from base to top. | 148 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12.9 kg |
| Package width The distance from one side of the packaging to the other. | 297 mm |
| Package depth The distance from the front to the back of the packaging. | 481 mm |
| Package height The distance from the top to the bottom of the packaging. | 297 mm |
| Package weight Weight of the packaged product. | 13.3 kg |
| SKU | 707708 |
| MPN | SUA500PDRI-H |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.apc.com/ |
