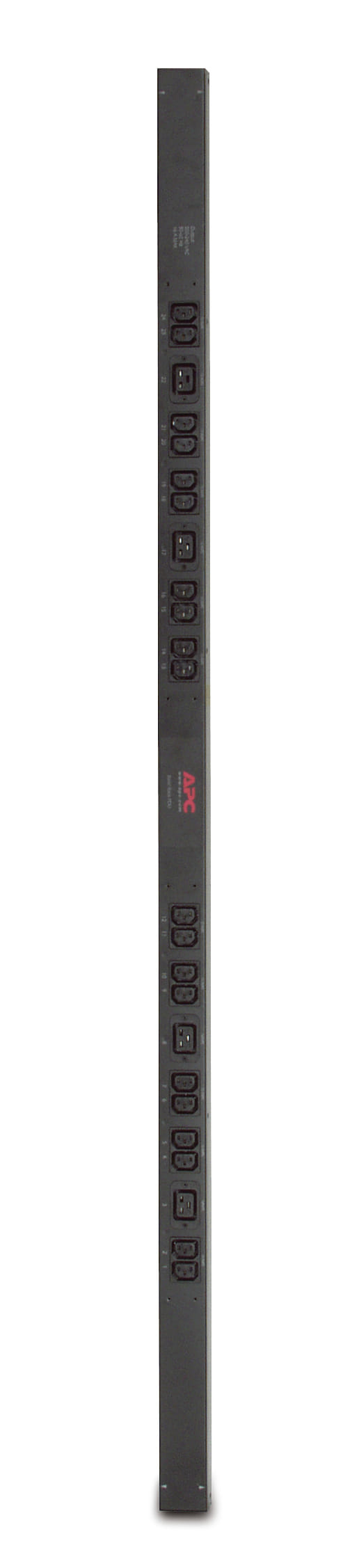

APC Basic Rack PDU; PDU types: Basic, Rack capacity: 0U, Mounting: Vertical; AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler,C19 coupler, Input connection type: IEC 309 16A; Cable length: 3.05 m, Certification: CCC, CE, VDE; Nominal input voltage: 230 V, Nominal output voltage: 230 V, Load capacity: 3680 VA; Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.57 kg
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs) that distribute power to rack-mount equipment.
- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.
- Single input power source.
- Toolless Mounting Capabilities.
- Vertical Mounting Capabilities.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Rack capacity The spase that device fill in rack. | 0U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| AC outlet types The type of outlet for AC electricity. | C13 coupler,C19 coupler |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | IEC 309 16A |
| Output connections | 20x IEC 320 C13 4x IEC 320 C19 |
| Features | |
| Cable length How long the cable is. | 3.05 m |
| Certification | CCC, CE, VDE |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power The maximum power that can be put into or produced by the device. | 3680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 56 x 44 x 1619 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.57 kg |
| Packaging data | |
| Package dimensions (WxDxH) Dimensions of the packaged product (Width x Depth x Height). | 152 x 127 x 2134 mm |
| Package weight Weight of the packaged product. | 6.48 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 413910 |
| MPN | AP7554 |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
