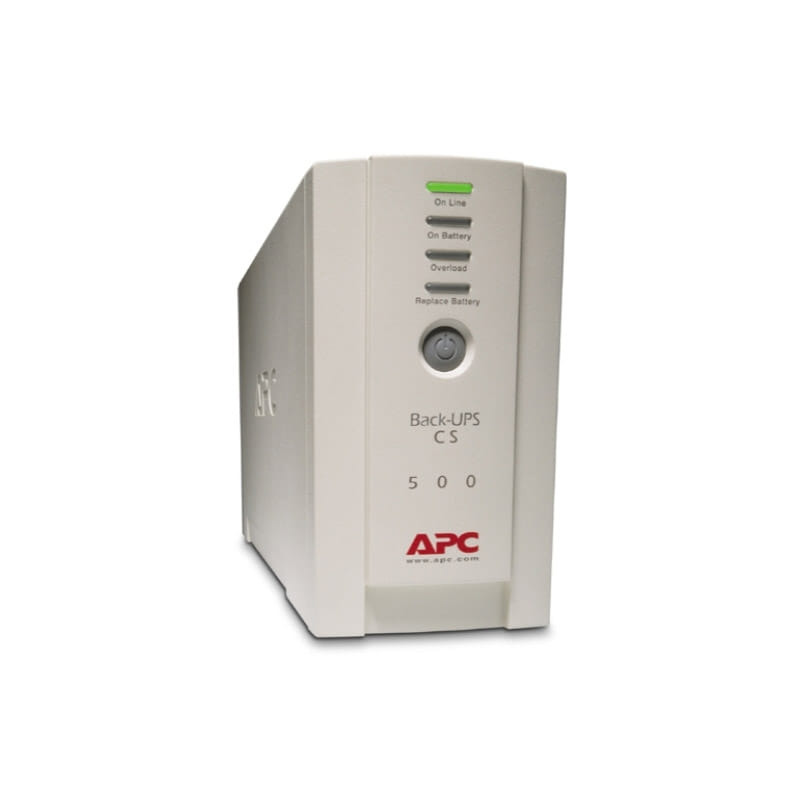

APC Back-UPS; UPS topology: Standby (Offline), Output power capacity: 500 VA, Output power: 300 W; AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s); Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 83 VAh; Form factor: Tower, Product colour: Beige, Cable length: 1.83 m; Width: 91 mm, Depth: 284 mm, Height: 165 mm
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Standby (Offline) |
| Output power capacity The maximum power that the device can produce. | 500 VA |
| Output power The power that the device can produce. | 300 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 160 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output frequency regulation | 47 - 63 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 7 A |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 310 J |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Efficiency | 99% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Surge protection |
 |
| Surge protection features | Digital Subscriber Line (DSL),Fax,Modem,Telephone |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Audible alarm modes | Low battery alarm,Overload alarm |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 4 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity | 83 VAh |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 3.8 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 13.8 min |
| Battery life (max) | 6 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 8 h |
| Automatic battery test |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Cable length How long the cable is. | 1.83 m |
| Product colour The colour e.g. red, blue, green, black, white. | Beige |
| LED indicators | Battery replacement |
| Energy Star certified This indicates that the product is compliant with Energy Star, which is an international standard for energy-efficient consumer products. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 91 mm |
| Depth The distance from the front to the back of something. | 284 mm |
| Height The measurement of the product from head to foot or from base to top. | 165 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.32 kg |
| Packaging data | |
| Cables included | Phone (RJ-11),USB cable |
| Quick installation guide |
|
| Warranty card |
|
| Software CD |
|
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | PowerChute Personal Edition |
| Package width The distance from one side of the packaging to the other. | 241 mm |
| Package depth The distance from the front to the back of the packaging. | 368 mm |
| Package height The distance from the top to the bottom of the packaging. | 178 mm |
| Package weight Weight of the packaged product. | 7.05 kg |
| Logistics data | |
| Quantity per pallet Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet. | 48 pc(s) |
| Quantity per master (outer) case | 1 pc(s) |
| Other features | |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| Filtering |
|
| Packaging content | Detachable 1.2m IEC power cord Detachable 1.8 m IEC power cord |
| SKU | 414295 |
| MPN | BK500EI |
| Brand | APC |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.apc.com/ |
