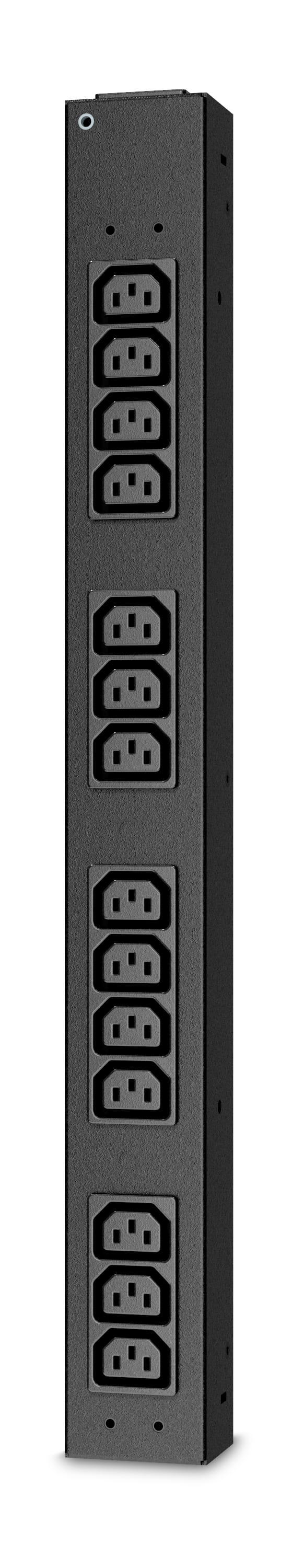

APC AP6003A, Basic, 0U/2U, Horizontal/Vertical, Black, 14 AC outlet(s), C13 coupler
APC AP6003A. PDU types: Basic, Rack capacity: 0U/2U, Mounting: Horizontal/Vertical. AC outlets quantity: 14 AC outlet(s), AC outlet types: C13 coupler, Input connection type: IEC-320 C20. Certification: cUL, UL, REACH. Nominal input voltage: 230 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 56 x 47 x 523 mm, Weight: 1.88 kg
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Type Characteristics of the device. | Single-phase |
| Rack capacity The spase that device fill in rack. | 0U/2U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 14 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | IEC-320 C20 |
| Features | |
| Certification | cUL, UL, REACH |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 20 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 100-240 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power The maximum power that can be put into or produced by the device. | 3680 W |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 56 x 47 x 523 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.88 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 123 x 107 x 612 mm |
| Package weight Weight of the packaged product. | 2.55 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 498593 |
| MPN | AP6003A |
| Brand | Schneider |
