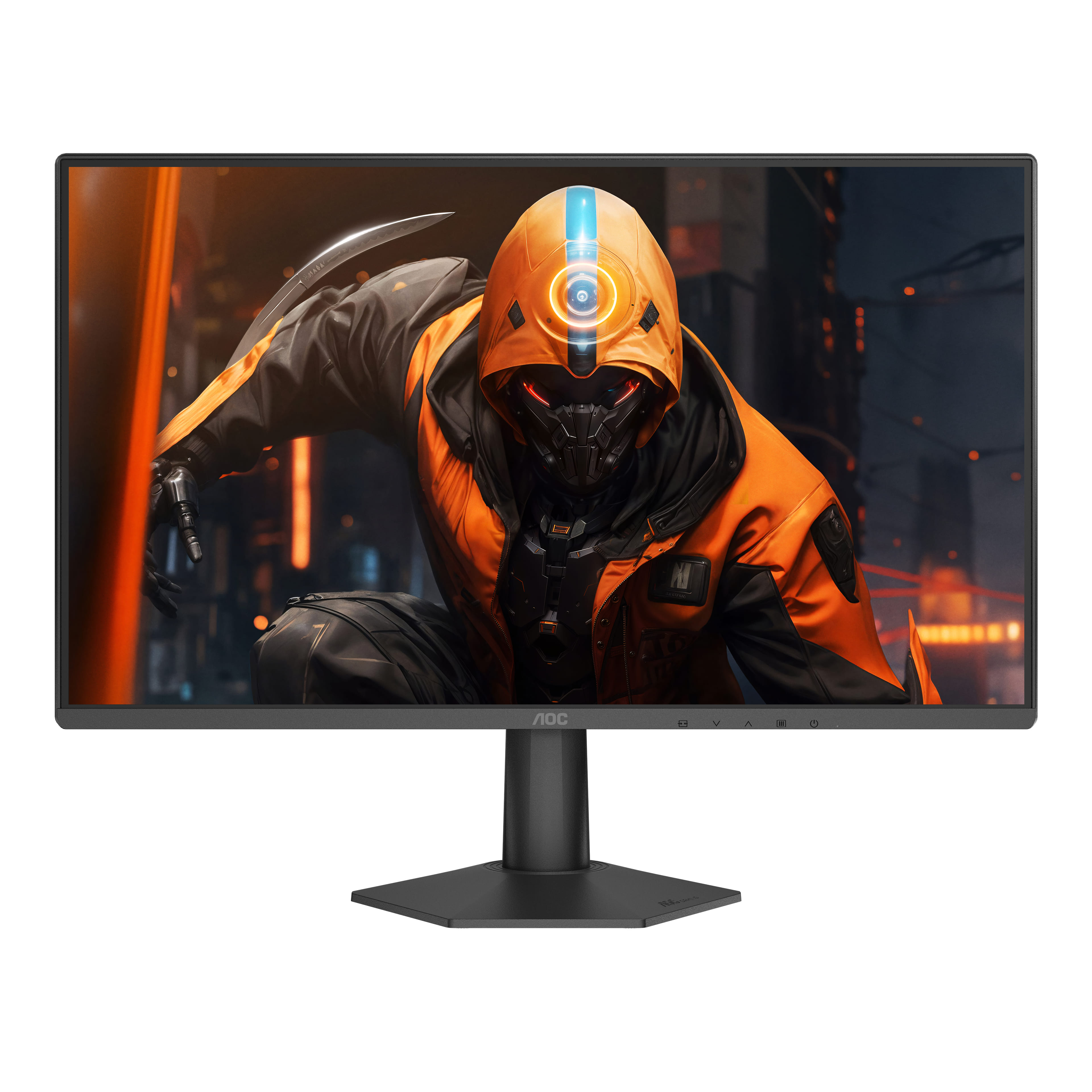

AOC 23.8' Gaming Monitor 260Hz Fast IPS, 1920x1080, 0.3ms MPRT, 107% sRGB, HDCP 2.2, HDMI 2.0 x 1, DisplayPort 1.4 x 1, tilt -5Deg 23Deg, VESA 100x100
AOC 23.8' Gaming Monitor 260Hz Fast IPS, 1920x1080, 0.3ms MPRT, 107% sRGB, HDCP 2.2, HDMI 2.0 x 1, DisplayPort 1.4 x 1, tilt -5Deg 23Deg, VESA 100x100
Specifications
Model name 24G50Z2
Panel 23.8' (Fast IPS)
Pixel Pitch (mm) 0.2745
Effective Viewing Area (mm) 527.04 (H) - 296.46 (V)
Brightness (typical) 300 cd/m2
Contrast Ratio 1000 : 1 (Static) MEGA DCR
Response Time 1ms
Viewing Angle 178/178
Color Gamut NTSC 95% (CIE1976) / sRGB 107% (CIE1931) / DCI-P3 87%
Color Accuracy E<2
Optimum Resolution 1920 - 1080 @ 260Hz
Display Colors 16.7 Million
HDMI HDMI 2.0 x 1
DisplayPort DisplayPort 1.4 x 1
HDCP Version HDMI: 2.2
USB Hub no
Power Supply External
Power Consumption (typical) 18W
Speakers no
Audio Output Headphone out (3.5mm)
Wall-Mount VESA 100x100
Specifications
Model name 24G50Z2
Panel 23.8' (Fast IPS)
Pixel Pitch (mm) 0.2745
Effective Viewing Area (mm) 527.04 (H) - 296.46 (V)
Brightness (typical) 300 cd/m2
Contrast Ratio 1000 : 1 (Static) MEGA DCR
Response Time 1ms
Viewing Angle 178/178
Color Gamut NTSC 95% (CIE1976) / sRGB 107% (CIE1931) / DCI-P3 87%
Color Accuracy E<2
Optimum Resolution 1920 - 1080 @ 260Hz
Display Colors 16.7 Million
HDMI HDMI 2.0 x 1
DisplayPort DisplayPort 1.4 x 1
HDCP Version HDMI: 2.2
USB Hub no
Power Supply External
Power Consumption (typical) 18W
Speakers no
Audio Output Headphone out (3.5mm)
Wall-Mount VESA 100x100
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 60.5 cm (23.8") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Panel type | Fast IPS |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| Backlight type | W-LED |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 1 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Response time (MPRT) | 0.3 ms |
| Anti-glare screen Always gives an optimal view, even in direct sunlight. |
|
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 80000000:1 |
| Maximum refresh rate | 260 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.2745 x 0.2745 mm |
| Viewable size, horizontal The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image. | 52.7 cm |
| Surface hardness | 3H |
| Performance | |
| Flicker-free technology |
|
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Front bezel colour | Black |
| Ports & interfaces | |
| Built-in USB hub Whether or not the device features a USB hub to connect more than one other device via USB. |
|
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| DisplayPort version | 1.4 |
| Headphone out The socket for connecting headphones to the device. |
|
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version | 2.2 |
| Ergonomics | |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| AC adapter output voltage | 19 V |
| Power supply type The type of power supply which this product uses. | External |
| Weight & dimensions | |
| Weight (with stand) | 2.42 kg |
| Weight (without stand) | 2.25 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 4.23 kg |
| Packaging content | |
| Cables included | DisplayPort |
| Other features | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | CE |
| Certification | RoHs compliant,CB,FCC |
| SKU | 832543 |
| MPN | 24G50Z2 |
| Brand | AOC |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 24.00 Inch |
| Refresh Rate (Hz) | 260Hz |
| Screen Resolution | 1920x1080 (FHD/1080p) |
| Input | DisplayPort / DP, HDMI |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Product Use | General, Gaming |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://au.aoc.com/ |
