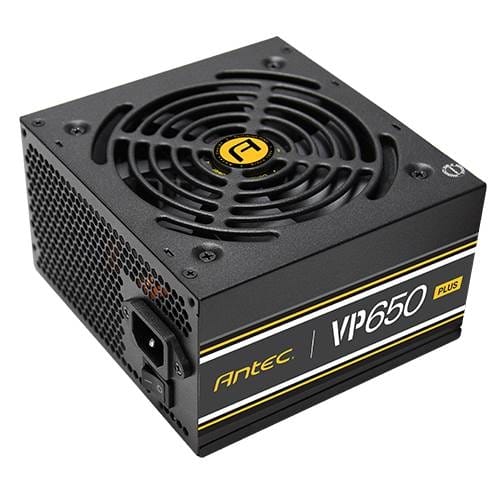

Antec VP650P PLUS 500w PSU. 80+ @ 85% Efficiency AC120-240V; Continuous Power; 120mm Silent Fan; 3 Years Warranty
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 650 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 88% |
| Power consumption (max) The maximum amount of power used by the device. | 648 W |
| Power protection features Features that protect the device against power problems e.g. overload. | Battery discharge, Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
 |
| ATX power connector (20+4 pin) |
|
| Floppy drive power connector | 1 |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.4 |
| EPS version | 2.92 |
| Certification | FCC, Ul, cUL, CB, CE, TUV, BSMI, CCC, RCM, Gost-R, KCC, ErP Lot 6 |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Chile |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 155 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.9 kg |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Technical details | |
| Sustainability certificates | RoHS |
| Other features | |
| Voltage tolerance | 10% |
| Manual |
|
| Housing colour The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment. | Black |
| Power plug type | Type C |
| SKU | 367017 |
| MPN | VP650P-PLUS |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| PSU Form Factor | ATX / PS2 |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.antec.com/ |
