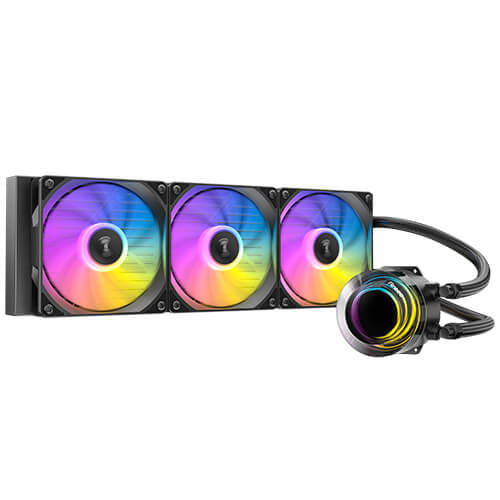

Antec Vortex Lum 360 ARGB, Liquid cooling kit, 12 cm, Black
Suspended Spiral
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
Massive Copper Base Plate
Provides highly efficient cooling at all loads.
EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
Extreme Cooling Performance
800+/-2001800+/-10% RPM
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
CPU Socket Compatibility
Intel compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD compatibility : AM3 / AM4 / AM5 / TR4
Pump Head Design
The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.
Highly Efficient Cooling Pump
Massive Copper Base Plate
Provides highly efficient cooling at all loads.
EPDM High-Density Tubing
The elastic and durable EPDM high-density tubing makes the minimal evaporation of liquid.
Superior Fin Density
Massive 13 fins dissipate heat rapidly.
PWM ARGB Fan
Comes with powerful 120mm ARGB PWM radiator fans, providing practical functionality and strong cooling performance.
Extreme Cooling Performance
800+/-2001800+/-10% RPM
Included ARGB Controller Working in Sync with the Motherboard
The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.
CPU Socket Compatibility
Intel compatibility : LGA 115X / 1200 / 1700 / 1851 / 20XX
AMD compatibility : AM3 / AM4 / AM5 / TR4
| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Liquid cooling kit |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM4, Socket AM5, Socket TR4 |
| Maximum airflow | 71.5 cfm |
| Maximum air pressure | 2.45 mmH2O |
| Fan 2 rotational speed (min) | 800 RPM |
| Fan 2 rotational speed (max) | 1800 RPM |
| Bearing type | Hydraulic |
| Fan noise level (max) | 31 dB |
| Pump noise level | 28 dB |
| Pump connector | 3-pin |
| Pump motor speed | 2800 RPM |
| Fan speed (min) | 800 RPM |
| Fan speed (max) | 1800 RPM |
| Pump's mean time to failure (MTTF) | 40000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 60 °C |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Number of fins | 13 |
| Illumination LED |
 |
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| Fan connector | 3-pin + 4-pin |
| Power | |
| Rated voltage | 12 V |
| Pump power consumption | 3 W |
| Thermal Design Power (TDP) | 280 W |
| Pump voltage | 12 V |
| Pump current | 250 mA |
| Fan current | 0.25 A |
| Weight & dimensions | |
| Radiator width | 12 cm |
| Radiator depth | 39.7 cm |
| Radiator height | 2.7 cm |
| Pump width | 6.7 cm |
| Pump depth | 6.7 cm |
| Pump height | 4.85 cm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Fan 2 dimensions (W x D x H) | 120 x 25 x 120 mm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU socket spacer(s) |
|
| CPU bracket(s) |
|
| Other features | |
| Fan rated voltage | 10.8 - 13.2 V |
| SKU | 819417 |
| MPN | Vortex Lum 360 ARGB |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.antec.com/ |
| Stock Availability | Available for Shipping |
