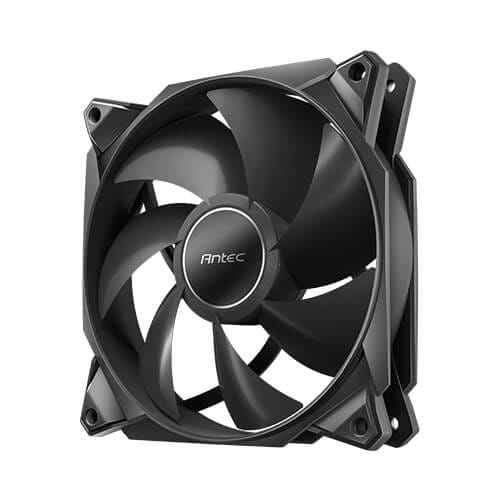

Antec Storm 120mm PWM FDB Fan, High Airflow 66.56 CFM, Air Pressure 2.7, Noise Level 25.8. Woven Cable, PMW Daisy Chain design, 3 Yrs Warranty
The Storm 120 is a highly efficient case fan featuring a flow concentration design, FDB bearing fan, and spiral fan structure. The Storm 120 will bring you incredible cooling performance.
Spiral Fan Structure
The spiral fan structure is designed for better airflow.
Flow Concentration Design
The well-processed fan structure can efficiently reduce noise and enhance airflow.
PWM Daisy-Chain Design
The Daisy-chain design makes cable management more easily and allows you to install multiple fans in tandem.
An Extension Cable Included
Fluid Dynamic Bearing Fan
The FDB bearing fan can extend durability and lifespan.
Anti-Vibration Pads
Well equipped with 8 anti-vibration pads, which will reduce vibration and noise
Fan Type PWM Fan
Dimensions 120*120*25 mm
Bearing Type FDB Bearing
LED Type N/A
Fan Speed 600~2000 RPM
Airflow 66.56 CFM (max.)
Air Pressure 2.7 mmH
Spiral Fan Structure
The spiral fan structure is designed for better airflow.
Flow Concentration Design
The well-processed fan structure can efficiently reduce noise and enhance airflow.
PWM Daisy-Chain Design
The Daisy-chain design makes cable management more easily and allows you to install multiple fans in tandem.
An Extension Cable Included
Fluid Dynamic Bearing Fan
The FDB bearing fan can extend durability and lifespan.
Anti-Vibration Pads
Well equipped with 8 anti-vibration pads, which will reduce vibration and noise
Fan Type PWM Fan
Dimensions 120*120*25 mm
Bearing Type FDB Bearing
LED Type N/A
Fan Speed 600~2000 RPM
Airflow 66.56 CFM (max.)
Air Pressure 2.7 mmH
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 2000 RPM |
| Noise level (low speed) | 11.4 dB |
| Noise level (high speed) How loud the device is when used at high speed. | 34.9 dB |
| Maximum airflow | 66.56 cfm |
| Maximum air pressure | 2.7 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 80000 h |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Fan connector | 4-pin |
| Power | |
| Voltage | 10.8 - 13.2 V |
| Rated voltage | 12 V |
| Rated current | 0.2 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 688037 |
| MPN | Storm 120 |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.antec.com/ |
| Stock Availability | Available for Shipping |
