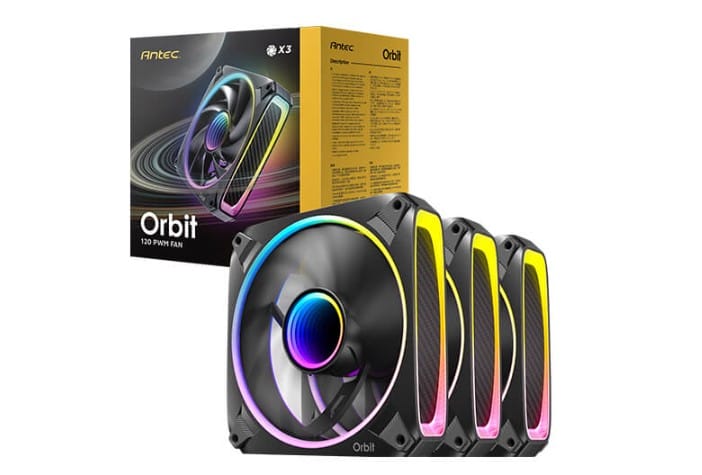

Antec Orbit 120 ARGB 3PK, Extreme Lighting 4 sides & Mirror inward Effect, PWM, 28MM Thickness Focus Airflow 66.72 CFM, FDB 9 Blades. Woven cable Fan
Antec Orbit 120 ARGB 3PK
9 Fan Blade design
The 9-blade design increases airflow,
providing better cooling performance.
Fluid Dynamic Bearing
forLonger Life and
Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.
COOLING PERFORMANCE > 66.72 CFM, Air Pressure 2.06, Noise Level 31 dB(A), 2000 RPM
Vibration-Absorbing &
Anti-Noise Pads
Equipped with 8 rubber pads, effectively absorbing vibrations and minimizing noise. Also features diagonal patterns, ensuring a cohesive overall design.
3Pin 5V, 4PIn PWM woven Cable + 1 to 3 Splitter cable
SPECIFICATIONS
Fan
Model Name Orbit 120 ARGB
Fan Type ARGB Fan
Dimensions 120*120*28 mm
Bearing Type FDB
Fan Speed 200-2000 +/-10% RPM
Airflow 0.48-66.72+/-5% CFM
Air Pressure 0.02-2.06+/-5% mmH
9 Fan Blade design
The 9-blade design increases airflow,
providing better cooling performance.
Fluid Dynamic Bearing
forLonger Life and
Reduced Noise
FDB bearing achieves optimal longevity while also enhancing anti-vibration, ensuring quieter and more stable operation.
COOLING PERFORMANCE > 66.72 CFM, Air Pressure 2.06, Noise Level 31 dB(A), 2000 RPM
Vibration-Absorbing &
Anti-Noise Pads
Equipped with 8 rubber pads, effectively absorbing vibrations and minimizing noise. Also features diagonal patterns, ensuring a cohesive overall design.
3Pin 5V, 4PIn PWM woven Cable + 1 to 3 Splitter cable
SPECIFICATIONS
Fan
Model Name Orbit 120 ARGB
Fan Type ARGB Fan
Dimensions 120*120*28 mm
Bearing Type FDB
Fan Speed 200-2000 +/-10% RPM
Airflow 0.48-66.72+/-5% CFM
Air Pressure 0.02-2.06+/-5% mmH
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Minimum airflow (imperial) | 66.72 cfm |
| Minimum air pressure | 0.02 mmH2O |
| Maximum air pressure | 2.06 mmH2O |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (min) | 18 dB |
| Fan noise level (max) | 31 dB |
| Fan speed (min) | 200 RPM |
| Fan speed (max) | 2000 RPM |
| Fan's mean time to failure (MTTF) | 50000 h |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED connector type | 3-pin |
| Fan connector | 3-pin |
| Power | |
| Voltage | 6 - 13.2 V |
| Rated voltage | 12 V |
| LED voltage | 5 V |
| Fan current | 0.35 A |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 28 mm |
| Technical details | |
| Warranty period | 3 year(s) |
| SKU | 823774 |
| MPN | Orbit 120 ARGB 3PK |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.antec.com/ |
| Stock Availability | Available for Shipping |
