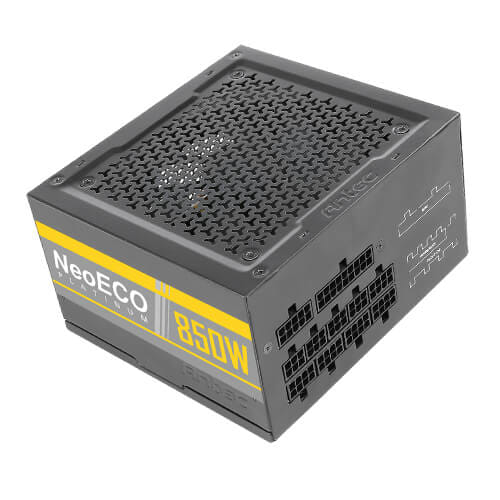

Antec NeoEco 850w 80+ Platinum, Fully Modular, Zero RPM, 28(18+10) pin MBU socket, 120mm Silent Fan, Continuous Power, ATX Power Supply
The new NeoECO Platinum series is ready to provide PC gamers the exceptional performance with the features of the latest ATX & EPS standard, outstanding stability, and 80 PLUS Platinum certification. The advanced thermal control with the Zero RPM mode enables to turn the fan off at low loads to provide absolute silence. With the 120mm silent fan, the NeoEco Platinum can optimize the balance between cooling and noise. High-quality Japanese heavy-duty caps can provide your system more stable performance. The CircuitShield design serves your industry-grade protection to make your system safe in any environment. With the 7-year warranty, the NeoECO Platinum series will be the most reliable choice for professional users and PC gamers.
120mm Silent Fan
Features improvement for airflow and excellent durability.
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
7-Year Warranty
The new NeoECO Platinum series from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.
Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
99%+12V - Output for maximum CPU & GPU support
CircuitShield 1/4 Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system s performance
28(18+10) pin MBU socket
Dimension: 150(W) x 140(L)x 86(H)
120mm Silent Fan
Features improvement for airflow and excellent durability.
Zero RPM Mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
Japanese Heavy-Duty Caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
PhaseWave LLC + DC to DC Design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
7-Year Warranty
The new NeoECO Platinum series from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 7-year warranty.
Full Modular
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
99%+12V - Output for maximum CPU & GPU support
CircuitShield 1/4 Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system s performance
28(18+10) pin MBU socket
Dimension: 150(W) x 140(L)x 86(H)
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 550,750,850 mm |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| Peripheral (Molex) power cable length | 550,700,850 mm |
| EPS power connector (4+4 pin) |
 |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) |
|
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) |
|
| Floppy disk drive connector |
|
| Floppy disk drive cable length | 15 cm |
| PCI Express connector |
|
| Cabling type | Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 2.4 |
| Silent mode |
|
| Certification | UL / TUV / CB / RCM / CE / CCC / FCC / BIS |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan location | Top |
| Illumination The device has illumination. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Packaging data | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| SKU | 509402 |
| MPN | NE850 Platinum AU |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
