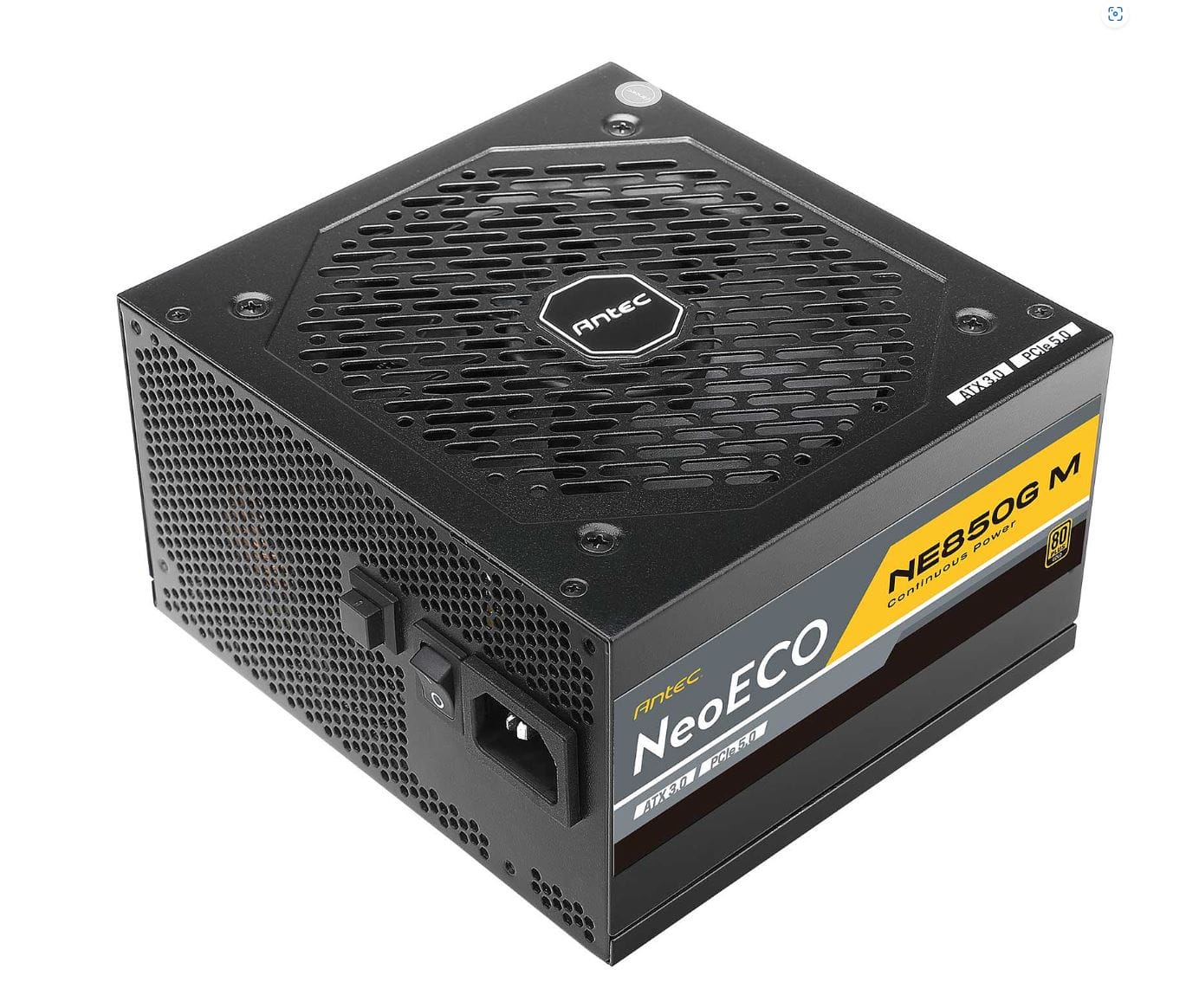

Antec NE 850w 80+ Gold, Fully-Modular, ATX 3.0, PCI-E 5.0, 120mm Silent Fan, Japanese Caps, ATX Power Supply, PSU, 10 Years Warranty
he brand-new NeoECO Gold Modular series was born ready for the best DIY-PC experience seekers, and it also serves exceptional performance and outstanding stability. Featured 100% full modular design and 80 PLUS Gold certification, the NeoECO Gold Modular series keeps your PC hardware installation convenient and clean. It still provides highly efficient power to your system and reduces your electricity bills
850G Pro Specification:
• 850W Continuous Power™ - Guaranteed 850W of Continuous Power™ from Antec
• 80 PLUS® Gold certified-Up to 92% efficient, to reduce your electricity bill
• AQ7 - Antec Quality 7 year warranty and lifetime global 24/7 support
• 120 mm Silence - Whisper-quiet high-quality fan with long lifetime
• Zero RPM Model for absolute silence
• Fully--Modular cable management - Improves airflow and reduces clutter
• 99% +12V - Output for maximum CPU & GPU support
• Japanese Heavy-Duty Caps- High-performance capacitors ensure DC stability and regulation
• 4 x PCI-E connectors for multiple GPU support
• ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
• PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
• ErP Lot 6: 2013 - Compliant to the toughest energy standard available
• CircuitShield™-
Full suite of industrial grade protections:
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Under Voltage Protection (UVP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO)
850G Pro Specification:
• 850W Continuous Power™ - Guaranteed 850W of Continuous Power™ from Antec
• 80 PLUS® Gold certified-Up to 92% efficient, to reduce your electricity bill
• AQ7 - Antec Quality 7 year warranty and lifetime global 24/7 support
• 120 mm Silence - Whisper-quiet high-quality fan with long lifetime
• Zero RPM Model for absolute silence
• Fully--Modular cable management - Improves airflow and reduces clutter
• 99% +12V - Output for maximum CPU & GPU support
• Japanese Heavy-Duty Caps- High-performance capacitors ensure DC stability and regulation
• 4 x PCI-E connectors for multiple GPU support
• ATX12V 2.4 - Engineered according to the newest PSU guideline and compatible with the latest CPU generation
• PhaseWave™ Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
• ErP Lot 6: 2013 - Compliant to the toughest energy standard available
• CircuitShield™-
Full suite of industrial grade protections:
Over Current Protection (OCP)
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Under Voltage Protection (UVP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO)
| Power | |
| Total power The total power that is needed by the device, or the total power produced by the device. | 850 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features Features that protect the device against power problems e.g. overload. | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector The way in which the motherboard is connected to the power supply. | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) |
 |
| ATX power connector (12+4 pin) |
|
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose What the product is used for. | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. | 3.0 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Certificates | |
| Certification | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.6 kg |
| Packaging data | |
| Package weight Weight of the packaged product. | 4.62 kg |
| Logistics data | |
| Warranty period | 10 year(s) |
| SKU | 781028 |
| MPN | NE850G M ATX3.0 AU |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 10 Years Warranty |
| Warranty Contact | https://www.antec.com/ |
