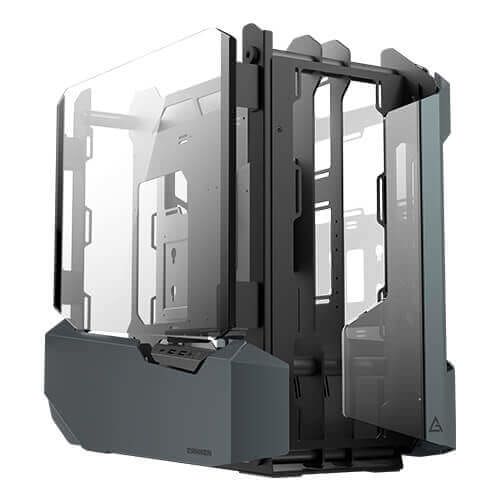

Antec CANNON Open Frame Case, E-ATX, ATX, Micro-ATX, ITX. Tempered Glass, USB 3.1 Type-C, USB 3.0 x 2, Aluminium.
High Octane Concept
Torque, a commanding mid tower with a forward-tilted motherboard position, aggressive lines, and plenty of features designed for performance-heavy builds, merges precision cut aluminum panels in high contrast crimson and gunmetal to bring an augmented experience to your desktop.
Torque is entirely open-air, with vast airflow and cooling management measures in place so that form and function are in perfect alignment. The high quality anodized aluminum panels are corrosion resistant, for unrivaled durability.
Dimensions 621 x 285 x 644 mm (DWH)
Form Factor Mid Tower
Materials Aluminum
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls USB3.0 x 2, MIC/AUDIO(HD), Power, Type-C USB3.1
Side Panel 4 mm Tempered glass (Both sides)
Torque, a commanding mid tower with a forward-tilted motherboard position, aggressive lines, and plenty of features designed for performance-heavy builds, merges precision cut aluminum panels in high contrast crimson and gunmetal to bring an augmented experience to your desktop.
Torque is entirely open-air, with vast airflow and cooling management measures in place so that form and function are in perfect alignment. The high quality anodized aluminum panels are corrosion resistant, for unrivaled durability.
Dimensions 621 x 285 x 644 mm (DWH)
Form Factor Mid Tower
Materials Aluminum
Mainboard Support ATX, Micro-ATX, ITX
Front Access & Controls USB3.0 x 2, MIC/AUDIO(HD), Power, Type-C USB3.1
Side Panel 4 mm Tempered glass (Both sides)
| Design | |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium, Plastic, Steel, Tempered glass |
| Form factor The shape or design of the product. | Full Tower |
| Type Characteristics of the device. | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Transparent |
| Supported motherboard form factors Design of the supported motherboards. | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks. | 1 |
| Number of 2.5" bays | 2 |
| Side window A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device. |
 |
| Tempered glass panel(s) |
|
| Cable management Description of improved cable management |
|
| On/off button |
|
| Maximum CPU cooler height | 8.5 cm |
| Maximum graphics card length | 38.5 cm |
| Maximum PSU length | 27 cm |
| Power supply | |
| Power supply included There is a power supply with this product. |
 |
| Ports & interfaces | |
| Audio input The type of audio input that the device requires, and the connection needed. |
|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Cooling | |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 6 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Liquid cooling capability |
|
| Front radiator fan sizes supported | 120,240,360 mm |
| Side radiator fan sizes supported | 120,240,360 mm |
| Rear radiator fan sizes supported | 420,120,140,240,280,360 mm |
| Storage | |
| Supported HDD sizes The size of the hard disk drives which can be used by the device. | 2.5,3.5" |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 261 mm |
| Depth The distance from the front to the back of something. | 604 mm |
| Height The measurement of the product from head to foot or from base to top. | 481 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 kg |
| Packaging data | |
| Cables included | PCIe |
| Package width The distance from one side of the packaging to the other. | 586 mm |
| Package depth The distance from the front to the back of the packaging. | 714 mm |
| Package height The distance from the top to the bottom of the packaging. | 365 mm |
| Package weight Weight of the packaged product. | 13.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| SKU | 653079 |
| MPN | CANNON |
| Brand | Antec |
| Product Condition | Brand New/Unused |
| Case/MB Form Factor | E-ATX |
| Case Colour | Black |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.antec.com/ |
