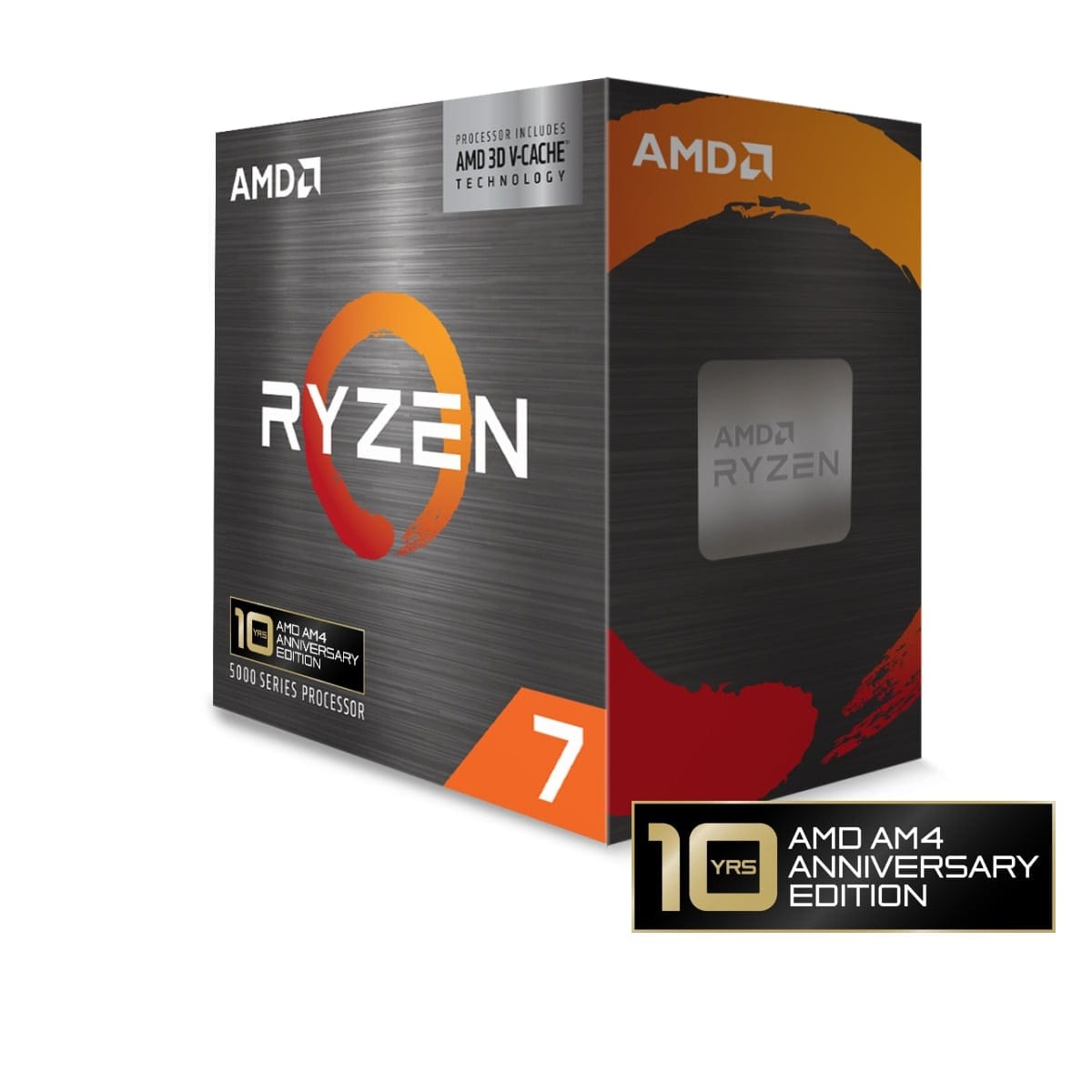

AMD Ryzen 7 5800X3D, AMD Ryzen™ 7, Socket AM4, 7 nm, Box, AMD, 5800X3D
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | AMD |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model The model number for the processor in a computer. | 5800X3D |
| Processor base frequency | 3.4 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | AMD Ryzen™ 7 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | Socket AM4 |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 7 nm |
| Processor threads | 16 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.5 GHz |
| Processor cache | 96 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 105 W |
| Package type The type of product package e.g. box. | Box |
| Cooler included The device comes with an integrated cooler. |
 |
| Compatible chipsets | AMD X470, AMD A520, AMD B450, AMD B550, AMD X570 |
| Memory | |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667,2933,3200 MHz |
| Memory channels | Dual-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Discrete graphics card |
|
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| Features | |
| PCI Express slots version | 4.0 |
| Processing Die size | 74 mm² |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit |
| Operational conditions | |
| Minimum operating temperature | 90 °C |
| SKU | 838833 |
| MPN | 100-100000651POF |
| Brand | AMD |
| Product Condition | Brand New/Unused |
| CPU Series | AMD Ryzen 7 |
| CPU Generation | AMD Ryzen 5xxx |
| CPU Socket | AM4 |
| Stock Availability | Available for Shipping, In Stock at Bankstown |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.amd.com/ |
