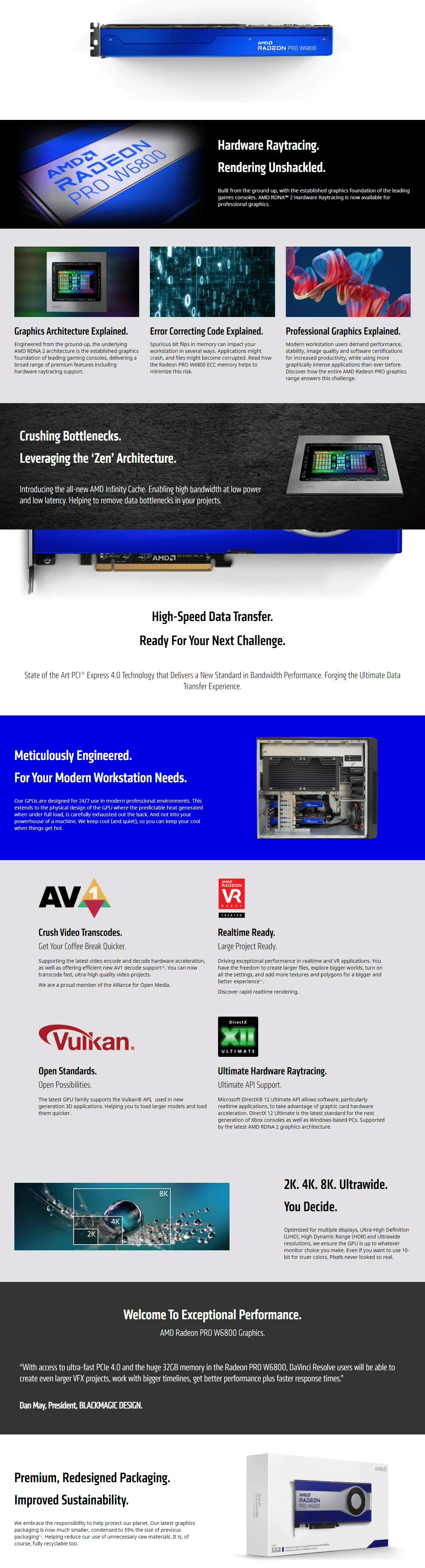

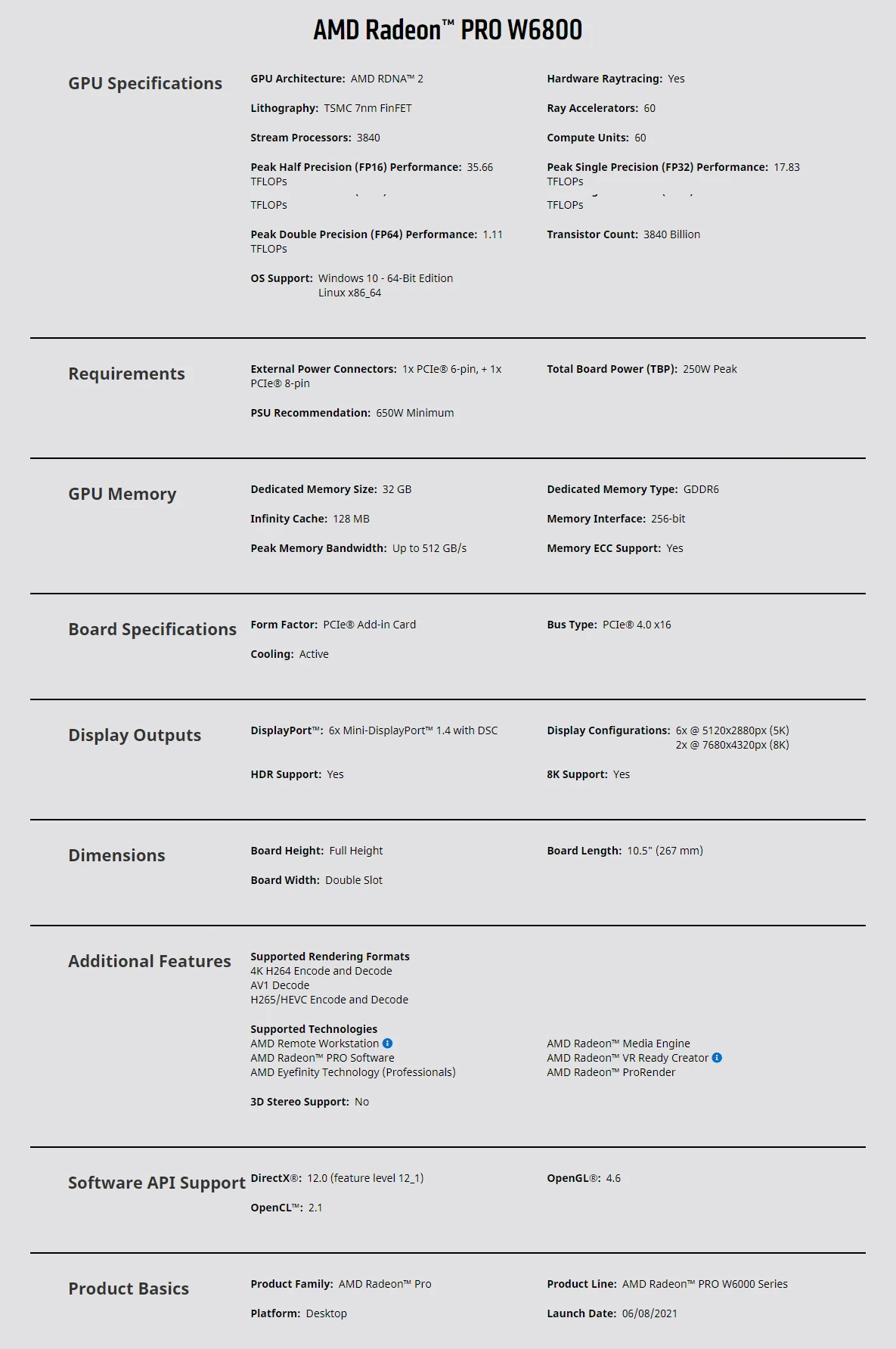

AMD Radeon Pro W6800, 32GB GDDR6, PCI-E 4.0, 6x Mini DisplayPort 1.4
| Processor | |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | AMD |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | Radeon PRO W6800 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Stream processors | 3840 |
| Lithography | 7 nm |
| Ray accelerators | 60 |
| Memory | |
| Discrete graphics adapter memory | 32 GB |
| Graphics adapter memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR6 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 256 bit |
| Memory bandwidth (max) | 512 GB/s |
| Ports & interfaces | |
| Interface type | PCI Express x16 4.0 |
| Mini DisplayPorts quantity | 6 |
| Performance | |
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12.0 |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.6 |
| OpenCL version | 2.1 |
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Product colour The colour e.g. red, blue, green, black, white. | Blue, Stainless steel |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 250 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
 |
| Weight & dimensions | |
| Depth The distance from the front to the back of something. | 267 mm |
| SKU | 520124 |
| MPN | 100-506157 |
| Brand | AMD |
| Product Condition | Brand New/Unused |
| GPU Series | AMD Radeon Pro W6800 |
| Graphics RAM Size | 32 GB |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.amd.com/ |
