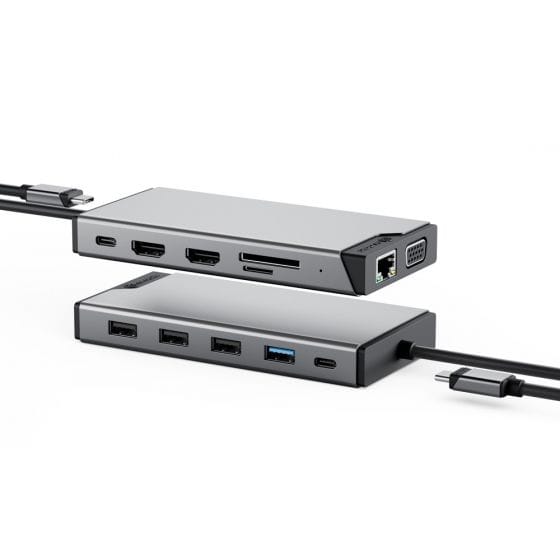

ALOGIC USB-C/A 12-in-1 Triple FHD DV3 Mini Docking Station with 100W PD, 3x FHD Output @60Hz, 2x HDMI , 1x VGA, GBLAN, 3x USB-A 2.0, 1x USB-A 3.2, 2x USB-C 3.2, SD/MicroSD Card Slots, DisplayLink, USB-C/A Adapter, No AC Adapter
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 2 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 5 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| LED indicators |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 11,Windows 7,Windows 8,Windows Vista,Windows XP |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 60 mm |
| Depth The distance from the front to the back of something. | 127 mm |
| Height The measurement of the product from head to foot or from base to top. | 16.5 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C |
| Manual |
|
| SKU | 531827 |
| MPN | DUCDDV3 |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
