ULDUNIV2-SGR

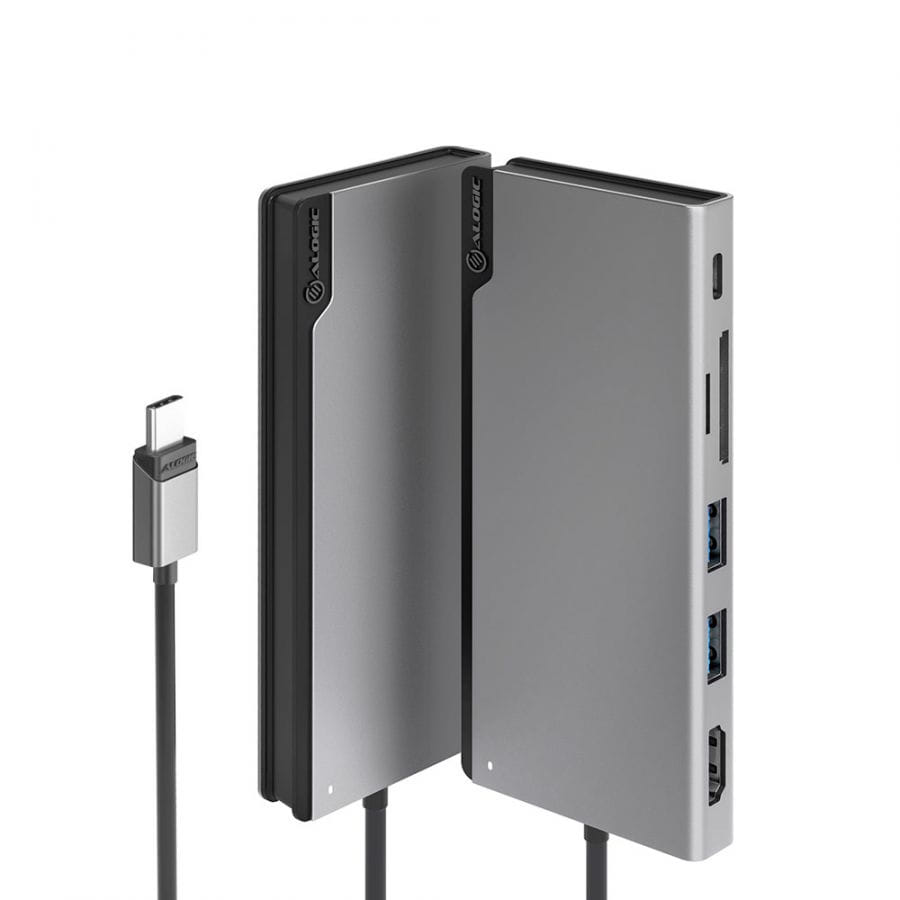

USB-C Ultra Dock UNI Gen 2
- HDMI 4K@60Hz, USB-C (Data & PD 100W), 2x USB-A and Micro/SD Card Readers
- Metal alloy construction for sleek looks and robust performance
- 2 Year Warranty
6-in-1 Ultra Dock
The alloy-encased UNI which features USB 3.2 capability has a mix of USB-A & USB-C ports for essential peripherals [including external keyboard, mouse, printer, and phone]. It includes SD and microSD card slots for speedy multimedia file transfers. Its HDMI port supports a stunning Ultra HD 4K@60Hz external display, and its 100W Power Delivery Passthrough technology means you can charge up your devices in a fraction of the time.
4K@60Hz Ultra HD Support
In tune with the increasing popularity of high-performance 4K content, ALOGIC's Dock UNI Gen 2 supports smooth Ultra HD experiences. The upgraded dock gifts video output up to 4K[60Hz]*, while also supporting legacy Full HD monitors. Screen multimedia content for work or entertainment in vivid detail.
100W Power Delivery
For power-thirsty laptops, the Dock UNI Gen 2 is a ready solution. Supporting USB Power Delivery 3.0 standards, the Dock Uni charges your USB-C powered laptop with up to 100W power.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Maximum digital resolution | 5120 x 2880 pixels |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Compatibility The other products, software and hardware this product can be used with. | Apple, Chromebook, Microsoft |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 49.2 mm |
| Depth The distance from the front to the back of something. | 119.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 12 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 105 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual |
|
| SKU | 546035 |
| MPN | ULDUNIV2-SGR |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
