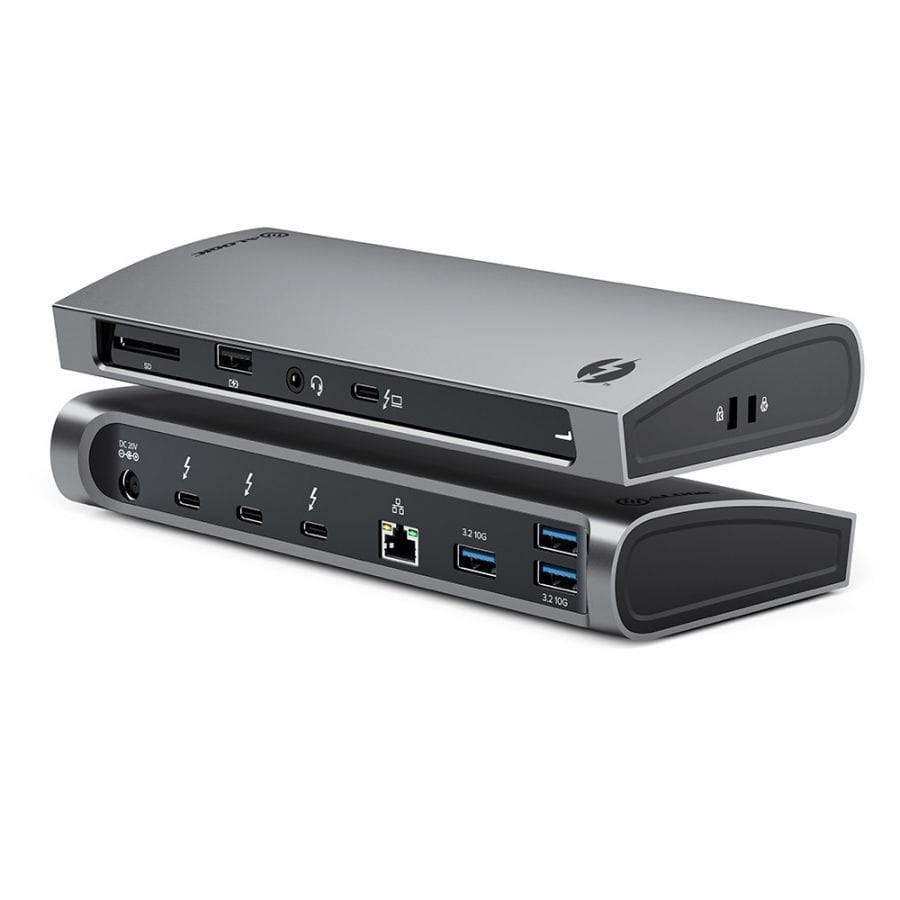

Thunderbolt 4 BLAZE Docking Station
TB4D3TB
- 3 x USB-C Thunderbolt 4/USB 4.0 (40 Gbps/3A), 3 x USB-A 3.1 Gen 2 (10Gbps), 1 x USB-A 2.0 (480Mbps) BC1.2 (1.5A), 1 x 3.5mm Combo Jack, , 1 x Gigabit Ethernet Port,1 x SD Card Reader (SD 4.0)
- Dual 4K@60Hz Display Support
- Up to 96W power to laptop
- Premium Aluminium Design
Thunderbolt 4 Blazing Performance
Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.
Single Cable Simplicity "96W Charging
This dock truly does it all "and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16 MacBook devices.
Comprehensive Connectivity
The ALOGIC BLAZE dock features a comprehensive range of ports to allow connection of all standard peripherals including:
- 3 x Thunderbolt/USB-C (40G)
- 3 x USB-A (10G)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Jack
- SD 4.0 Card Reader
Dual Ultra-High Definition Display: 4K@60Hz
The BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB-C (DP Alt Mode) as follows:
- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz
| Name | Value |
|---|---|
| Barcode (EAN) | 9350784023902 |
| Colour | Space grey and black |
| Compatible Size | N/A |
| Device Compatibility | Apple, Microsoft |
| Dimensions | 194 (L) x 84 (W) x 30 (H) |
| Input | Thunderbolt 4 or USB-C (with DisplayPort Alt Mode) |
| Materials | Premium alloy housing ABS |
| Output | 3 x USB-C Thunderbolt 4/USB 4.0, 40Gbps, 3A 3 x USB-A 3.1 Gen 2, 10Gbps, 1 x USB-A 2.0, 480Mbps, BC1.2 1.5A 1 x 3.5mm Combo Jack, 1 x Gigabit Ethernet Port, 1 x SD Card Reader (SD 4.0) Up to 96W power to laptop |
| Package includes | Blaze Dock x 1 User Manual Power Adapter Power Cables US, UK, EU, AU (1 each) |
| Power | 135W External Power Adapter (supplied) Dock can provide up to 96W power to computer |
| Product Type | Docking Station |
| Security | 1 x Lock Slot 1 x Nano Lock Slot |
| Video Resolution | Thunderbolt 3/4, USB 4.0 Hosts Dual Display: 4K (3840 x 2160)@ 60Hz* USB-C USB 3.x Hosts Single Display: 4K (3840 x 2160) @ 60Hz |
| Warranty | 2 Years |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | Thunderbolt 4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Thunderbolt 4 ports quantity | 3 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Combo headphone/mic port |
 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Compatibility The other products, software and hardware this product can be used with. | Apple, Microsoft |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 135 W |
| Power consumption (max) The maximum amount of power used by the device. | 96 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 84 mm |
| Depth The distance from the front to the back of something. | 194 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| AC adapter included |
|
| Manual |
|
| SKU | 550676 |
| MPN | TB4D3TB |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
