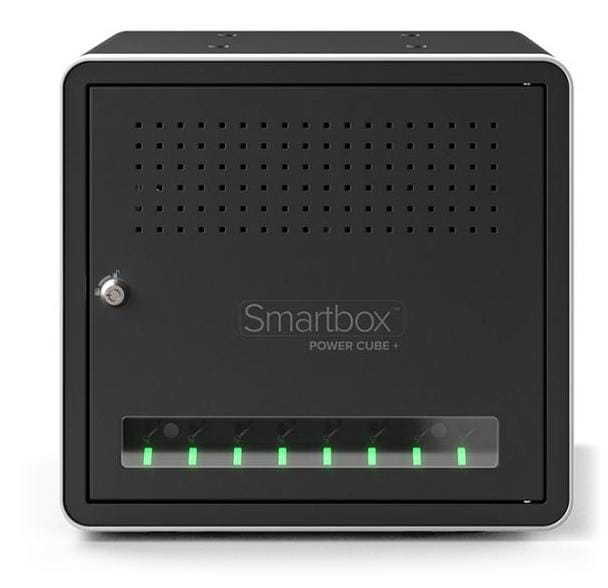

The Smartbox Power Cube safely stores syncs and powers eight tablets or laptops [delivering up to 45W power to each]. The cabinet s USB-C PD 3.0 ports enable busy classrooms offices and other work spaces to fast charge devices that traditional cabinets can t including Notebooks and Chromebooks.
The Smartbox cabinet s stackable build [side-by-side or box-on-box] slide-in door and optional wall-mount attachment supports the versatile storage requirements in different office learning and commercial settings. The cube s compact construction [W396 x D395 x H373mm] is especially space-friendly and the vertical dividers inside the box support secure and orderly cable management.
ALOGIC s Smartboxes are warranty-backed and compliant to protect the security and safety of cabinet and laptop users in educational and business settings. The stylish cubes feature active ventilation to control the temperature of charging devices. In adherence with USB Power Delivery 3.0 standards the cabinets feature over voltage over current over temperature and surge protection for all connected devices. The Smartbox outputs a total of over 500W power ensuring each device receives up to 45W for safe charging. Device managers can also lock the Smartbox with a single steel locking mechanism.
PRODUCT SPECIFICATION
Device Capacity: 8 Bays
Support Device: Up to 14" screen size
Warranty: 2 years
Compliance: ANZ: RCM
Physical Characteristics:
Compartment Dimensions (mm): (W) 32 x (D) 339 x (H) 247.6
Cabinet Dimensions (mm): (W) 396 x (D) 395 x (H) 373
Weight: N.W: 10.88Kg G.W: 14.10Kg
Charging Type: USB-C Charging and Sync
Power Specifications:
Input: AC 100-240V, 50/60Hz, 5.8A
Output: PD3.0
DC 5V, 9V, 10V, 12V, 15V / 3A or 20V / 2.25A for each port.
PRODUCT FEATURE
- Individual LED lights show charging and synchronizing status.
- Steel locking mechanism with keys.
- Stackable design.
- Slide-in door saves spaces and allows you to use the cabinet in tighter spaces.
- Twin DC Fans for air circulation when actively charging.
- Removeable Vertical dividers for easy cable management and to secure devices.
- Supports USB Type C &PD3.0 Charging standard.
- Data sync and firmware upgrade connection.
- Optional Wall Mounting Bracket.
| Name | Value |
|---|---|
| Compatible/Used for | Up to 14" screen size |
| Connection | USB-C Charging |
| Dimension | (W) 396mm x (D) 395 x (H) 373 |
| Power | up to 45W power to each |
| Product Type | Charging Cabinet |
| Series | |
| Warranty | 2 Years |
| Weight | 14.10Kg |
| Design | |
| Type Characteristics of the device. | Portable device management case |
| Placement Where the product can be placed e.g. floor, wall. | Table |
| Number of racks | 8 pc(s) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Features | |
| Number of devices supported The amount of devices that can be used with this product. | 8 |
| Supported portable devices The portable devices which work with this product. | Notebook |
| Charging source How the battery is charged. | USB Type-C |
| Device connectors supported The device connectors which can be used with this product e.g. USB cables. | USB Type-C |
| Maximum screen size The maximum screen size which can be used with this product. | 35.6 cm (14") |
| LED indicators |
 |
| Locking |
|
| Lock type The type of lock on the device. | Key |
| Ventilation The product has ventilation. |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Stackable Devices can be placed on top of each other. |
|
| Certification | FCC Part 15 / IEC-003, EN62368-1 / cULus:CSA CE-EMC, LVD EN62368-1, TUV-GS RCM |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 5.8 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 396 mm |
| Depth The distance from the front to the back of something. | 395 mm |
| Height The measurement of the product from head to foot or from base to top. | 373 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10.9 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| Number of keys included | 2 pc(s) |
| SKU | 642950 |
| MPN | SB-SCC08BD |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://alogic.co/ |
