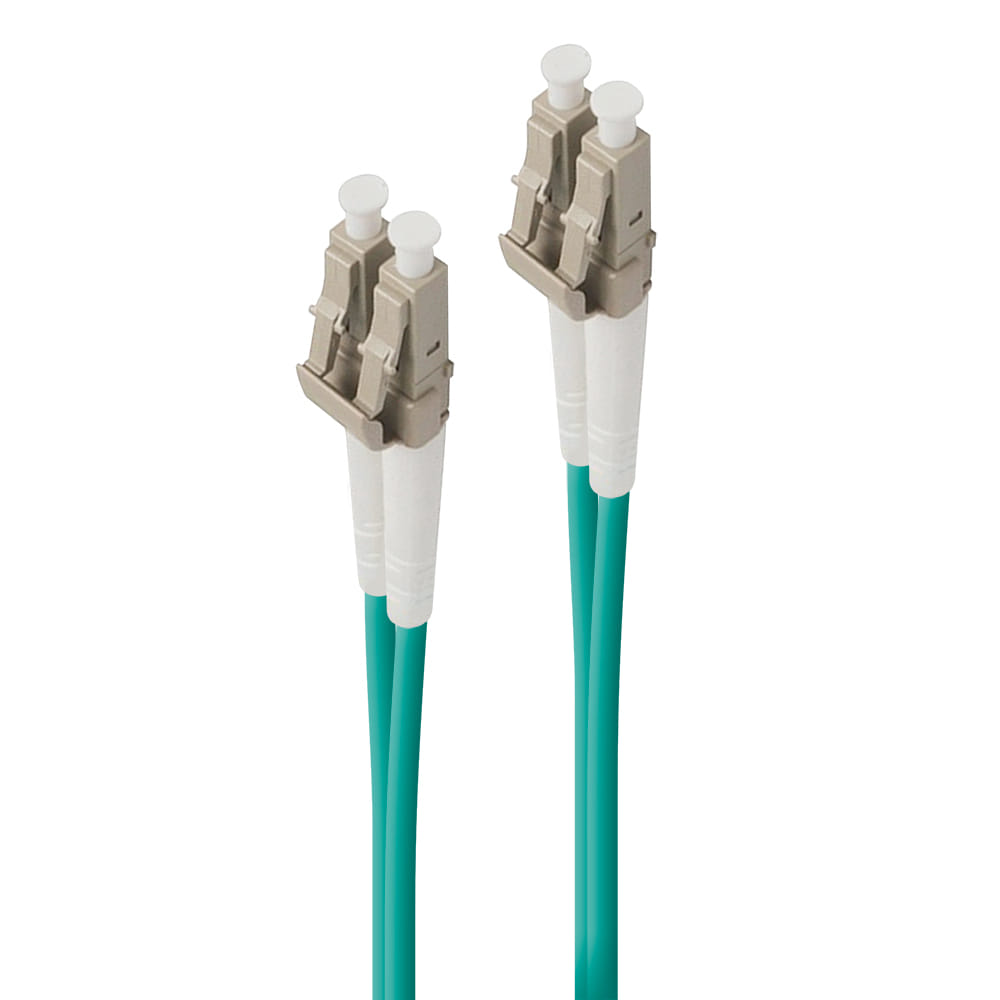

Alogic 20m LCLC 10G Multi Mode Duplex LSZH Fibre Cable 50/125 OM3
PRODUCT FEATURES
- Multi Mode OM3 fibre optic cable.
- Available in various lengths starting from 0.5m to 30m length.
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
- 100% optically tested and provided with test reports.
- Life Time warranty.
PRODUCT SPECIFICATIONS
| Connector Type: | LC, LC |
| Wavelengths: | 50 µm (OM3)/125 µm |
| Attenuation: | At 850 nm: <2.3 dB per km |
| At 1300 nm: <0.6 dB per km | |
| Insertion Loss: | <0.2 dB per 300 m @ 850 nm or 1300 nm |
| Fiber: | Glass |
| Number of Fibers: | 2 |
| Jacket: | LSZH (Low Smoke Zero Halogen) |
| Cable Outer Diameter: | 2mm +/-0.2mm |
| Safety: | ETL/c-ETL |
| Features | |
| Cable length How long the cable is. | 20 m |
| Connector 1 This is the first connector in the device. | LC |
| Connector 2 This is the second connector in the device. | LC |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable type Type of cable e.g. electicity cable, optical cable. | LSZH |
| Fibre optic type The standardised properties of the fiber optic cable. | OM3 |
| Cable colour Colour of the cable e.g. white, gray. | Turquoise |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Core diameter The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire. | 50 µm |
| Cladding diameter The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire. | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850,1300 nm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| Insertion loss | 0.2 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Certification | ETL/c-ETL |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 2 mm |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Number of optical fibres | 2 |
| SKU | 313712 |
| MPN | LCLC-20-OM3 |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
