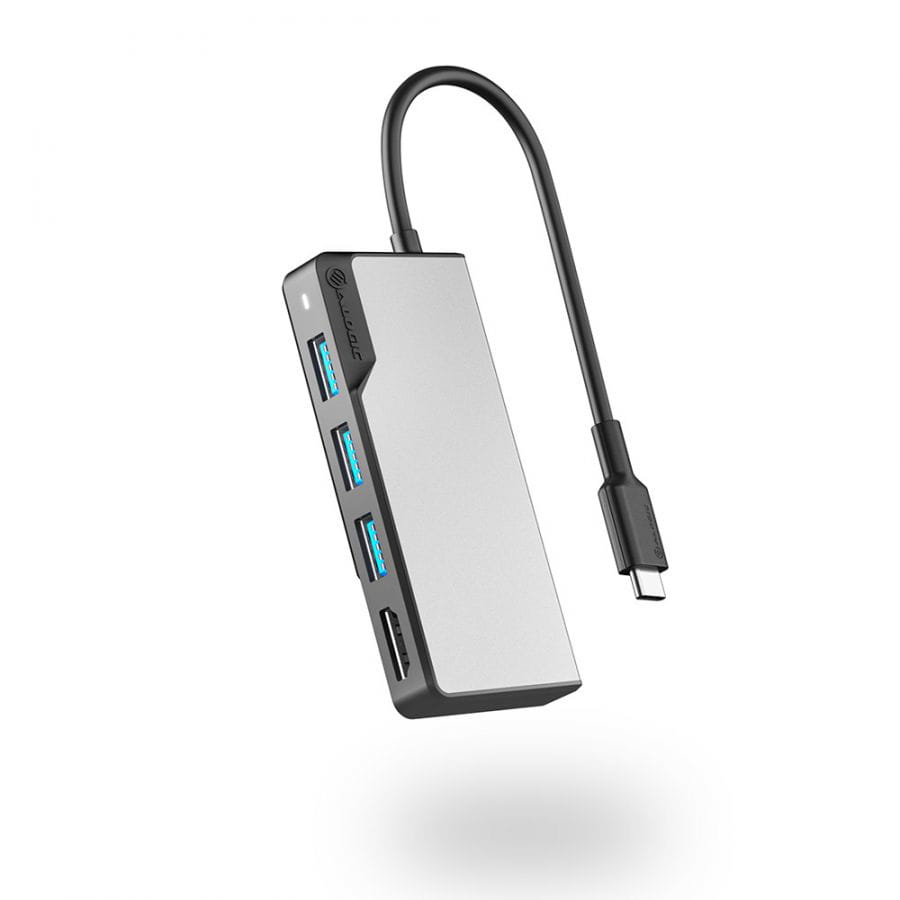

USB-C Fusion CORE 5-in-1 HDMI & USB Hub- 1 x HDMI@4K@60Hz, 3 x USB-A (USB3.0) 1 x USB-C (Data + PD) - Space Grey
USB-C Fusion CORE 5-in-1 Hub - Space Grey
Expand the functionality of your USB-C Laptop/tablet/phone by providing additional ports such as 1 x HDMI 4K@60Hz, 1 x USB-C & 3 x USB-A with support for speeds up to 5Gbps (USB 3.0) and sharing 2A current for charging your mobile devices. EMI Shielding, Plug & Play.
| Name | Value |
|---|---|
| Colour | Space Grey |
| Compatible/Used for | Apple, Chromebook, Microsoft devices |
| Data Rate | USB 3.1 (Gen 1) data rate of up to 5Gbps |
| Input | USB-C Male |
| Output | 1 x HDMI 4K@60Hz, 1 x USB-C 3.1 Gen 1 (5Gbps), 3 x USB-A 3.1 Gen 1 (5Gbps) |
| Product Type | Hub |
| Warranty | 2 Years |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 5 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS) |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| Cable length How long the cable is. | 0.23 m |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 40 mm |
| Depth The distance from the front to the back of something. | 91 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 60 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual |
|
| SKU | 550725 |
| MPN | UCFUHDV2-SGR |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
