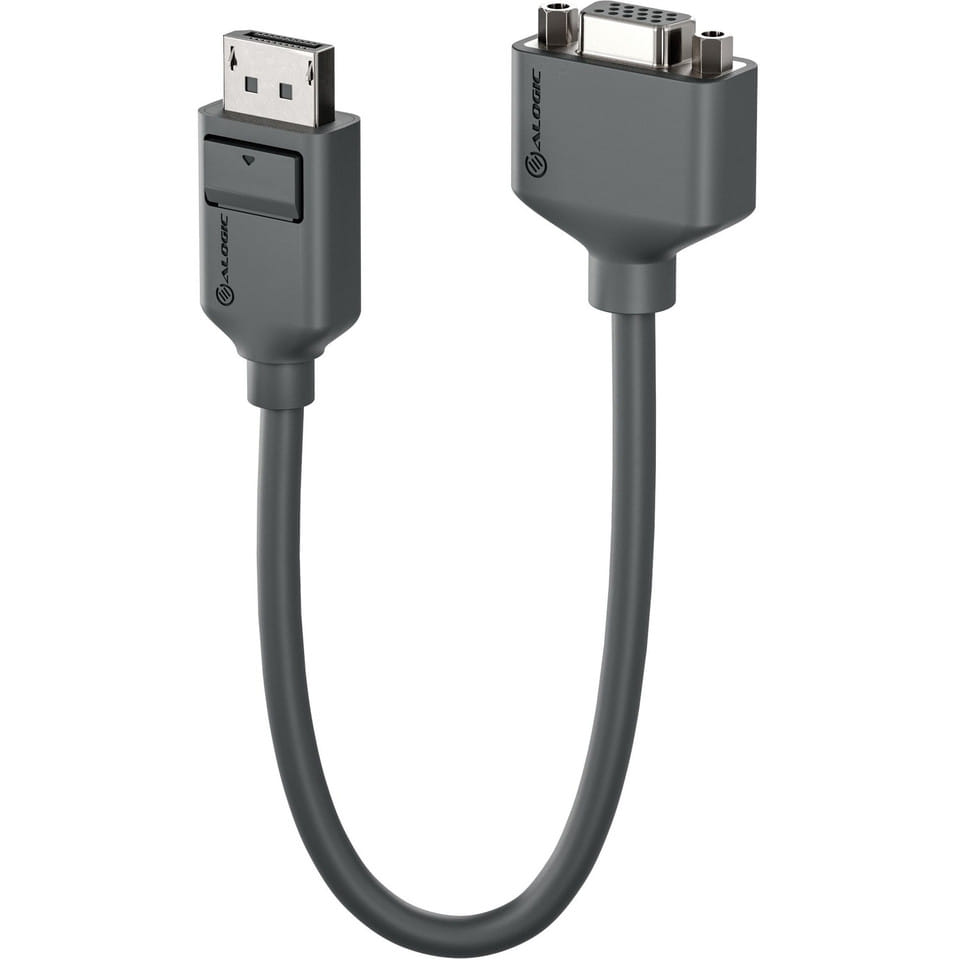

Alogic Elements DisplayPort/VGA Video Cable
20cm DisplayPort/VGA Video Cable for Video Device Second End: 15 pin HD 15 VGA Male
Lets you enjoy HD quality movies
DisplayPort and VGA ports for instant connectivity
Fully compatible with video devices
Professional Performance
Designed for when performance, reliability and value count, Elements series cables are budget friendly while providing professional performance for home or commercial use.
These cables are used to connect DisplayPort sources to VGA displays. They support VGA resolutions up to the maximum of 1920 x 1200.
Engineered with low profile connectors and high flexibility, low bend radius cable, these cables are ideal for use where space is limited such as behind displays and in equipment racks.
Convenient Connectivity
These cables are great for making use of your older displays which still work but don t feature digital inputs. Instead of consigning them to the scrap heap, keep them working with newer computers using these cables.
Reliability You Can Count On
Engineered with professional applications in mind, these cables utilise highly flexible 32AWG cable for reliable performance and ease of installation in home or business uses.
Years of feedback about other companies DisplayPort cables failing in the field has led us to develop our own unique connector construction to ensure long lasting reliability.
Our robust ABS low profile DisplayPort connectors provide a comfortable grip and easy insertion while standing up to use in high traffic environments. The connectors are latching, meaning they can t fall out once connected.
With hundreds of thousands of our cables installed in professional environments, this range draws upon our vast experience providing products that last the test of time in the most demanding applications.
Whether at home or in the office, you can be assured that these cables won t let you down.
Our Elements cables ship with 100% recyclable packaging, helping your business operate more sustainably.
| Name | Value |
|---|---|
| Compatible/Used for | DisplayPort/VGA port |
| Product Type | 20cm Video Cable |
| Warranty | Lifetime |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length How long the cable is. | 0.2 m |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 4.95 Gbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| SKU | 725393 |
| MPN | EL2DPVGA-ADP |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter, DisplayPort Adapter |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://alogic.co/ |
