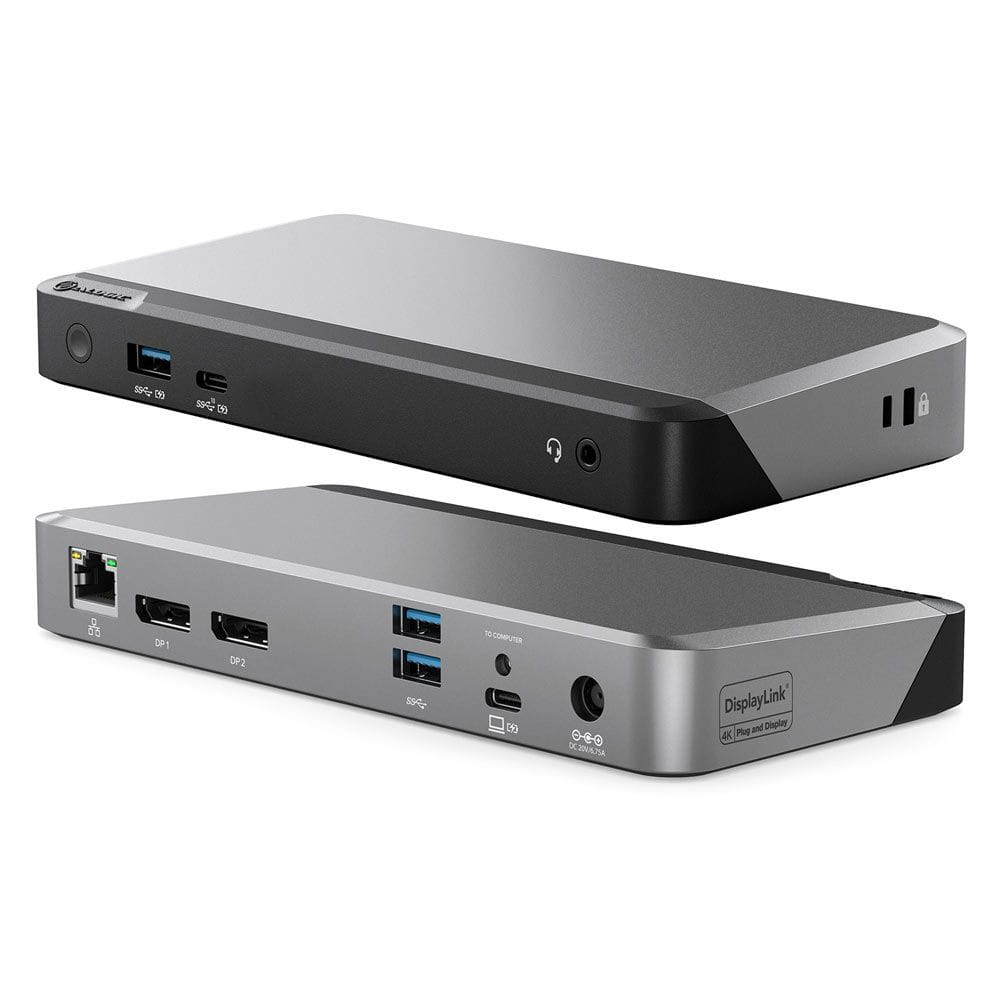

ALOGIC DX2 Dual 4K Display Universal Docking Station with 65W Power Delivery, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 65 W, 3.5 mm, 1000 Mbit/s, Black, Grey
Designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops, the DX2 dock provides access to all of the ports required in a home office, education, or corporate environment.
Immersive Dual 4K
Sometimes you need more screen real estate. The DX2 can connect up to two external displays at up to 4K resolutions via its twin DisplayPort outputs.
Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the DX2 is the perfect way to see more work on your screen, and do more work on your screen.
USB-C & USB-A LAPTOP COMPATIBLE
IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.
LED Power Light
Lock Slot
VESA Mount
DUAL DISPLAY ON M1 MAC
M1 Mac users can work on up to two screens when they plug into the DX2.
MADE WITH DISPLAYLINK
The DX2 s DisplayLink technology boosts your connectivity, power and productivity at work.
Immersive Dual 4K
Sometimes you need more screen real estate. The DX2 can connect up to two external displays at up to 4K resolutions via its twin DisplayPort outputs.
Whether you need to view big spreadsheets on multiple screens, compare designs, enter data or more, the DX2 is the perfect way to see more work on your screen, and do more work on your screen.
USB-C & USB-A LAPTOP COMPATIBLE
IT decision-makers and organisations have more options with the DX3. It supports USB-C and USB-A laptop deployment.
LED Power Light
Lock Slot
VESA Mount
DUAL DISPLAY ON M1 MAC
M1 Mac users can work on up to two screens when they plug into the DX2.
MADE WITH DISPLAYLINK
The DX2 s DisplayLink technology boosts your connectivity, power and productivity at work.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 65 W |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| USB Sleep-and-Charge |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Maximum digital resolution | 5120 x 2880 pixels |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Display modes | Extended, Mirror |
| LED indicators |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Charging function |
|
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS) |
| Brand compatibility What other brands this brand can be used with. | Universal |
| Certification | FCC |
| Power | |
| Power source type What the power source is. | AC |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 100 W |
| Compatible power plug types | AU,EU,UK,US |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Sustainability | |
| Sustainability certificates | RoHS, CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 190 mm |
| Depth The distance from the front to the back of something. | 90 mm |
| Height The measurement of the product from head to foot or from base to top. | 6.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 535 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC, USB Type-C |
| AC adapter included |
|
| Manual |
|
| Interface adapters included | USB Type-C male - USB Type-A female |
| SKU | 536588 |
| MPN | DUPRDX2-WW |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
