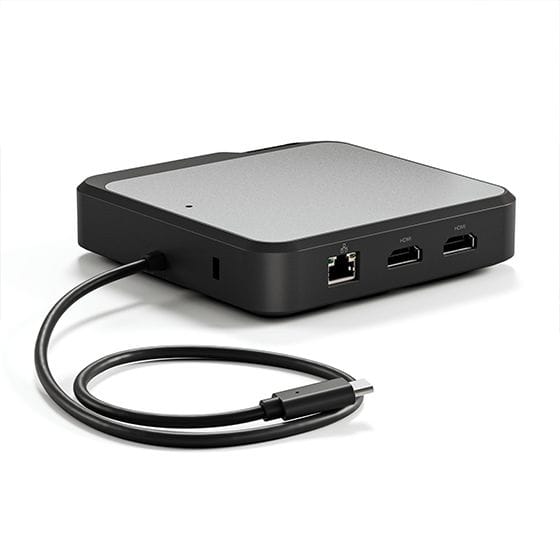

ALOGIC Dual 4K Universal Compact Docking Station CH2 HDMI Edition
Supports two 4K displays
Universally compatible with USB-C and USB-A laptops
Comprehensive connectivity for key peripherals
100W power passthrough
Gigabit Ethernet
Lock slots to secure shared working environments
Connect up to Two 4K Displays
ALOGIC s Dual 4K Universal Compact Docking Station s twin HDMI outputs enable you to connect two external displays at resolutions up to 4K.
The dock s inbuilt DisplayLink technology ensures you experience the highest-possible screen resolutions for your computer monitor, regardless of your computer model, or whether you connect to USB-A or USB-C ports.
When you expand your screen real estate with the CH2, you have better oversight of your work. This oversight can improve your efficiency and productivity.
Comprehensive Connectivity for Your Desk
The CH2 s comprehensive suite of high-performing ports supports the versatile connectivity needs of homes, schools, and businesses. The dock s USB-A [3.2 Gen 2, 10Gbps] and USB-C ports [3.2 Gen 2, 10Gbps] keep essential USB accessories such as external drives, scanners, keyboards, and mice humming.
Connect your laptop to the CH2 for up to 100W pass-through charging [when the CH2 is connected to an external power adapter], and connect to the Internet with Gigabit Ethernet when security and stability are paramount. The CH2 also features an SD 4.0/UHS-II Card Reader, so you can rapidly transfer your bulky multimedia libraries to and from the dock.
Passthrough Charging While You Work
The compact CH2 is built to fast-charge your laptop with up to 100W power delivery while you run multiple displays, USB accessories, and Ethernet, all over a single USB-C cable*. All you need to do is plug your laptop in when it s time to get to work, and unplug when it s time to take your laptop on the road.
*When connected to a host computer with USB-C ports that support USB Power Delivery, the CH2 will connect peripherals and charge the laptop over a single USB-C cable. USB-A enabled laptops can be charged from the dock using the ALOGIC DCAP-SPL USB-C Data + Power Splitter (available separately).
When you need your laptop for mobile work, the CH2 docks can also operate by connecting directly with your computer s USB port [without an external power supply]. However, factor in that the docks USB-C ports are inactive in the absence of a power adapter connection, due to power constraints.
| Name | Value |
|---|---|
| Compatible/Used for | universal |
| Product Type | Compact Docking Station |
| Warranty | 2 Years |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.0 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| Power source type What the power source is. | USB |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 320 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual |
|
| Interface adapters included | USB Type-C male - USB Type-A female |
| SKU | 677264 |
| MPN | DUCH2 |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
