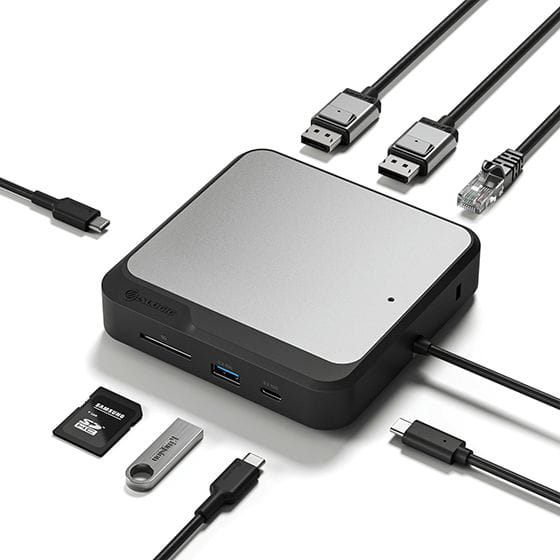

ALOGIC Dual 4K DisplayPort Universal Compact Docking Station
MX2 USB-C Dual Display DP Alt. Mode Docking Station " With 100W Power Delivery
Designed to expand the capabilities of any laptop.
Engineered for compatibility across all Windows and MacOS OS laptops.
The MX2 dock provides access to all of the ports required in a home office, education, or corporate environment.
SIMPLIFIED CONNECTIVITY -DP Alt. Mode Technology
The MX2 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to two displays and multiple other accessories. No need to install drivers or software. Plug in and go.
SINGLE 5K DISPLAY WITH MAC
The MX2 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up.
DUAL 4K DISPLAY WITH WINDOWS
Windows users can plug into the MX2 to run up to two ultra-polished external displays.
| Name | Value |
|---|---|
| Compatible/Used for | Windows and MacOS |
| Product Type | Docking Station |
| Warranty | 2 Years |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 2 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,1000,100 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Grey, Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| Power source type What the power source is. | USB |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 320 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual |
|
| Interface adapters included | USB Type-C male - USB Type-A female |
| SKU | 642859 |
| MPN | DUCD2 |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://alogic.co/ |
