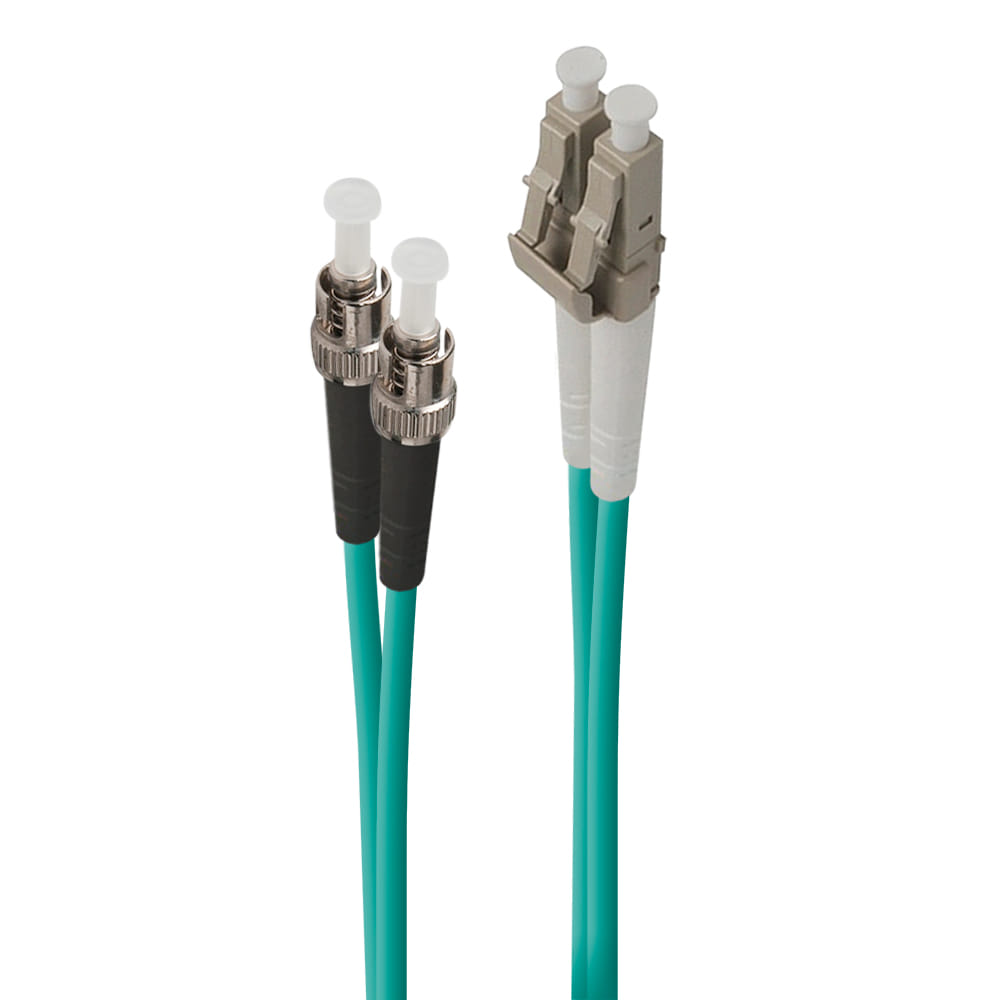

ALOGIC 1m LC-ST 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4, 1 m, LSZH, OM4, LC, ST, Turquoise
The Multi Mode OM4 Cables are designed to support very high transfer speed, the Cables are capable of supporting up to 100gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The Cables meet or exceed industry standard specifications; each Cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM4 Patch Cables are available in various lengths starting from 1m to 10m length.
| Features | |
| Cable length How long the cable is. | 1 m |
| Connector 1 This is the first connector in the device. | LC |
| Connector 2 This is the second connector in the device. | ST |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable type Type of cable e.g. electicity cable, optical cable. | LSZH |
| Fibre optic type The standardised properties of the fiber optic cable. | OM4 |
| Cable colour Colour of the cable e.g. white, gray. | Turquoise |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Core diameter The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire. | 50 µm |
| Cladding diameter The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire. | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850,1300 nm |
| Ethernet interface type | 40 Gigabit Ethernet,100 Gigabit Ethernet |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 100 Gbit/s |
| Insertion loss | 0.5 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Certification | ETL/c-ETL |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 3 mm |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Number of optical fibres | 2 |
| SKU | 316141 |
| MPN | LCST-01-OM4 |
| Brand | Alogic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://alogic.co/ |
