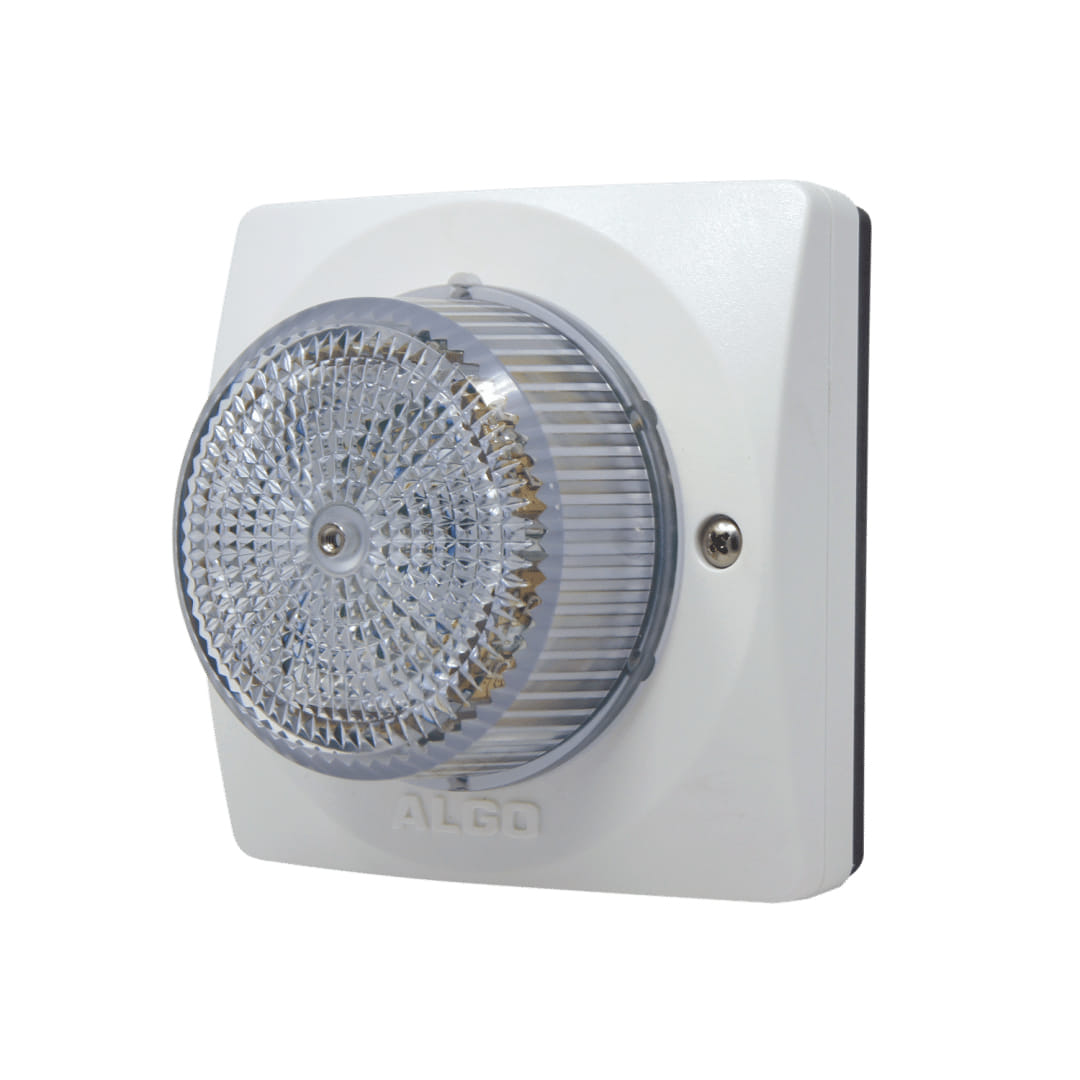

Algo 8128, Wired, 500 g, 122 x 122 x 76 mm, -40 - 50 DegC, White, 600 g
Multi-Application SIP Extensions
Multiple SIP registrations are available in this IP strobe light, including Page (50), Emergency Alert (10) and Ring (10) extensions. On Page, the strobe light will auto-answer and flash for the duration of the voice announcements. For Ring and Emergency Alert extensions the strobe light will flash for the duration of the alerting event.
Scale Algo IP Strobe Lights Over Any Size Building or Campus
The 8128 SIP Strobe Light supports multicast send or receive. As a result, many Algo IP strobe lights can be deployed to cover any size building, campus or enterprise. There is no limit to the number of devices part of a multicast, and a minimum of network traffic activity is utilized. Multiple strobe lights in a multicast will flash in a synchronized pattern.
A single registered 8128 can be configured to multicast to any number and mix of Algo IP speakers, paging adapters, strobe lights and multicast supported IP telephones.
Multicast provides cost effective scalability using a minimum of SIP registered endpoints, as only the endpoint designated to send the multicast needs to be registered. Devices configured to receive the multicast do not need registration.
Support is available for RTP multicast, in addition to Polycom Group Page, Singlewire InformaCast (part no. 8128-IC).
Zone Paging
Multicast zone paging for up to 50 zones can be configured from a single 8128 strobe light. Zones can be selected one of two ways. One option is to map multicast page zones to individual SIP extensions on the endpoint. Fifty (50) page extensions are available for this purpose. Alternatively, in order to minimize SIP registrations, multicast page zones can be configured in the SIP strobe light as a DTMF key press selection using the dial pad of telephone making the page call.
Alert Notification in Manufacturing, Education & Other PA Applications
Together with the Algo 8301 SIP Paging Adapter & Scheduler, a PA system requiring multiple zones with scheduled bells / announcements can be easily configured and synchronized with IP clocks using the 8128 and other Algo IP speakers.
If desired, the 8301 IP paging adapter can also provide audio to a legacy analog paging system via its line level output, and simultaneously multicast this audio to additional Algo IP endpoints.
IP Visual Ring Alerting
The Ring extension on the 8128 is used for telephone visual ringing / ring alerting. The 8128 will flash when this extension is called. Typically the strobe light will be configured in a ring group to include a telephone(s). The strobe light will flash for the duration of the ring event until the call is answered. Eleven(11) flash patterns, each with three intensity levels, are available to choose from.
Up to 10 Ring extensions are available to register on a single strobe light, thereby allowing one device to act as a visual alerter for several telephones by configuring different ring groups for each registered Ring extension.
Where audible and visual telephone ring alerting is required, the 8128 can be combined with an Algo IP speaker using multicast or a relay.
Emergency Notification Alerting
For notification alerting of safety, security and emergency events there are two activation options available: Dial an Emergency Alert extension or connect a button to the strobe
Multiple SIP registrations are available in this IP strobe light, including Page (50), Emergency Alert (10) and Ring (10) extensions. On Page, the strobe light will auto-answer and flash for the duration of the voice announcements. For Ring and Emergency Alert extensions the strobe light will flash for the duration of the alerting event.
Scale Algo IP Strobe Lights Over Any Size Building or Campus
The 8128 SIP Strobe Light supports multicast send or receive. As a result, many Algo IP strobe lights can be deployed to cover any size building, campus or enterprise. There is no limit to the number of devices part of a multicast, and a minimum of network traffic activity is utilized. Multiple strobe lights in a multicast will flash in a synchronized pattern.
A single registered 8128 can be configured to multicast to any number and mix of Algo IP speakers, paging adapters, strobe lights and multicast supported IP telephones.
Multicast provides cost effective scalability using a minimum of SIP registered endpoints, as only the endpoint designated to send the multicast needs to be registered. Devices configured to receive the multicast do not need registration.
Support is available for RTP multicast, in addition to Polycom Group Page, Singlewire InformaCast (part no. 8128-IC).
Zone Paging
Multicast zone paging for up to 50 zones can be configured from a single 8128 strobe light. Zones can be selected one of two ways. One option is to map multicast page zones to individual SIP extensions on the endpoint. Fifty (50) page extensions are available for this purpose. Alternatively, in order to minimize SIP registrations, multicast page zones can be configured in the SIP strobe light as a DTMF key press selection using the dial pad of telephone making the page call.
Alert Notification in Manufacturing, Education & Other PA Applications
Together with the Algo 8301 SIP Paging Adapter & Scheduler, a PA system requiring multiple zones with scheduled bells / announcements can be easily configured and synchronized with IP clocks using the 8128 and other Algo IP speakers.
If desired, the 8301 IP paging adapter can also provide audio to a legacy analog paging system via its line level output, and simultaneously multicast this audio to additional Algo IP endpoints.
IP Visual Ring Alerting
The Ring extension on the 8128 is used for telephone visual ringing / ring alerting. The 8128 will flash when this extension is called. Typically the strobe light will be configured in a ring group to include a telephone(s). The strobe light will flash for the duration of the ring event until the call is answered. Eleven(11) flash patterns, each with three intensity levels, are available to choose from.
Up to 10 Ring extensions are available to register on a single strobe light, thereby allowing one device to act as a visual alerter for several telephones by configuring different ring groups for each registered Ring extension.
Where audible and visual telephone ring alerting is required, the 8128 can be combined with an Algo IP speaker using multicast or a relay.
Emergency Notification Alerting
For notification alerting of safety, security and emergency events there are two activation options available: Dial an Emergency Alert extension or connect a button to the strobe
| Features | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 50 °C |
| Power | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 122 x 122 x 76 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 500 g |
| Packaging data | |
| Package weight Weight of the packaged product. | 600 g |
| Quantity per pack | 1 pc(s) |
| SKU | 767468 |
| MPN | 8128 |
| Brand | Algo |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
