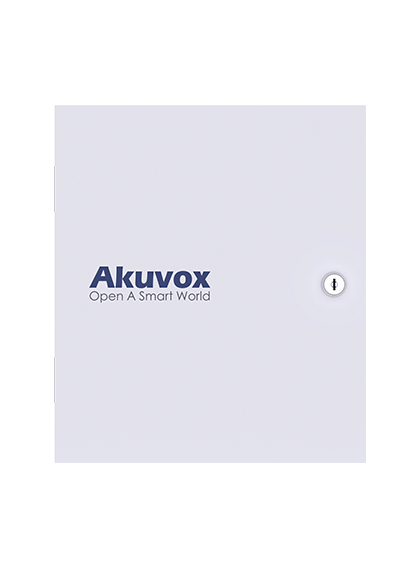

ELEVATOR CONTROLLER
AK-EC33
Akuvox EC33 is an IP-based elevator access controller which works with all Akuvox intercoms and access control terminals. It is typically used in multifamily and office buildings to enhance building access security.
Features- 10/100M Ethernet
- Large storage 20000 cards and 100000 logs
- Have 32 outputs and support expansion to 64 outputs
- Wiegand 26/34 supported
- Work with Akuvox intercoms and access control terminals via HTTP commands
- Fire alarm input for emergency door release or daily elevator command
- Akuvox cloud supported
| Technical details | |
| Maximum number of doors The maximum quantity of doors supported by device. | 1 door(s) |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RJ-45 / RS-485 |
| Card holders quantity | 20000 |
| Event capacity | 100000 |
| Performance | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Wiegand interface |
|
| Number of Wiegand readers supported | 34 |
| Alarm input channels | 1 |
| Power | |
| AC voltage range | 100 - 240 V |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 270 mm |
| Depth The distance from the front to the back of something. | 75 mm |
| Height The measurement of the product from head to foot or from base to top. | 320 mm |
| SKU | 808072 |
| MPN | EC33 |
| Brand | Akuvox |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.akuvox.com/ |
| Stock Availability | Available for Shipping |
