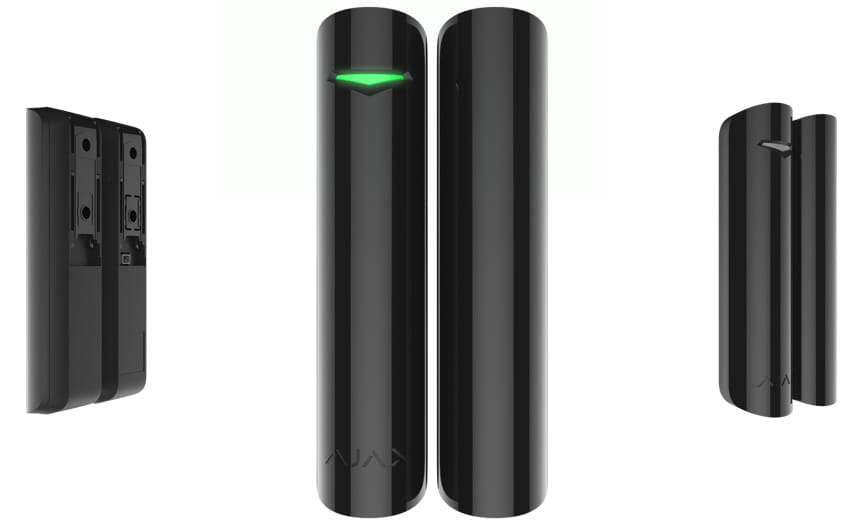

Ajax DoorProtect Plus, Wireless, RF Wireless, Black, 868 - 868.6 MHz, 1200 m, Door/Window
Wireless opening detector notifies of first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Principle of operation
The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.
Features
The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Features | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RF Wireless |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 868 - 868.6 MHz |
| Transmission distance The distance over which the device can transmit a signal. | 1200 m |
| Suitable for Who can use the product, or what the product can be used for. | Door/Window |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
 |
| Ambient temperature (min) | -10 °C |
| Suitable for indoor use |
|
| Ambient temperature (max) | 40 °C |
| Tamper protection |
|
| Compatible products Other products that can be used with this product. | Ajax Hub, Hub Plus, Hub 2, ReX |
| Certification | DSTU EN 50131 |
| Power | |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | CR123A |
| Battery life | 60 month(s) |
| Battery voltage The voltage (V) of the battery. | 3 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 20 mm |
| Depth The distance from the front to the back of something. | 20 mm |
| Height The measurement of the product from head to foot or from base to top. | 90 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 29 g |
| Packaging content | |
| Battery included |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 758369 |
| MPN | 30621 |
| Brand | Ajax |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
