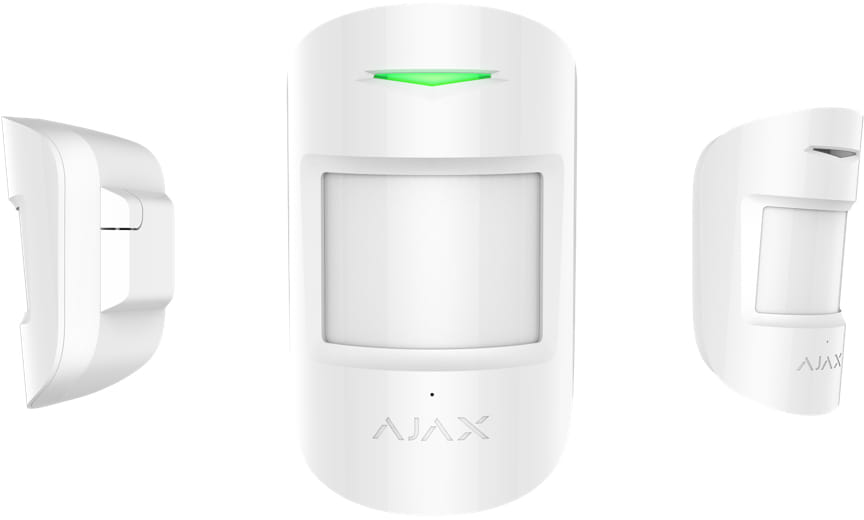

Ajax CombiProtect, Passive infrared (PIR) sensor, Wireless, 868 - 868.6 MHz, 12 m, 1200 m, 20 kg
Wireless combined motion and glass break detector. The device helps to secure the room from intruders entering through doors and windows, and monitors the current state of the glass.
Principle of operation
The device combines the functions of two detectors - motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window.
Features
The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
Principle of operation
The device combines the functions of two detectors - motion detector and glass break detector. It detects motion in the room at a distance of up to 12 m and registers broken glass at a distance of up to 9 m from the window.
Features
The device detects motion even in hot climates by means of temperature compensation. It filters false alarms caused by thunder, dogs barking or the sound of passing trucks.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
| Security | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Passive infrared (PIR) sensor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 868 - 868.6 MHz |
| Detection distance | 12 m |
| Transmission distance The distance over which the device can transmit a signal. | 1200 m |
| Pet immunity (max) | 20 kg |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RF |
| Features | |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Placement Where the product can be placed e.g. floor, wall. | Indoor |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES |
| Installation height (max) | 2.4 m |
| Compatibility The other products, software and hardware this product can be used with. | Ajax Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge |
| Certification | DSTU EN 50131 |
| Power | |
| Power source type What the power source is. | Battery |
| Battery life | 5 year(s) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | CR123A |
| Battery voltage The voltage (V) of the battery. | 3 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 65 mm |
| Depth The distance from the front to the back of something. | 50 mm |
| Height The measurement of the product from head to foot or from base to top. | 110 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 92 g |
| SKU | 758360 |
| MPN | 30614 |
| Brand | Ajax |
