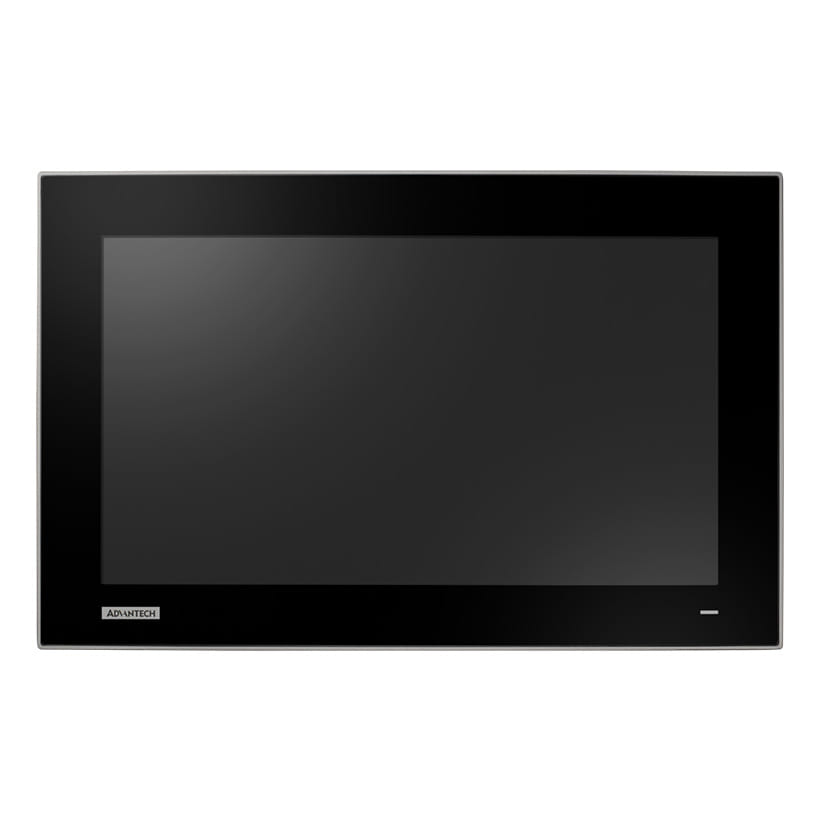

Advantech FPM-724W-P9AE, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LCD, Black, Silver
23.8" Full HD Industrial Monitor with P-CAP Touch Control, Direct HDMI, DP, and VGA Ports
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 60.5 cm (23.8") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Panel type | TFT |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment. | 350 cd/m² |
| Screen shape | Flat |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 16.7 million colours |
| Surface hardness | 7H |
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Industrial |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Ports & interfaces | |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Headphone out The socket for connecting headphones to the device. |
 |
| Ergonomics | |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75 mm |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Power | |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.158 W |
| Power consumption (max) The maximum amount of power used by the device. | 25.47 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Weight & dimensions | |
| Width (without stand) | 595.9 mm |
| Depth (without stand) | 53 mm |
| Height (without stand) | 374.1 mm |
| Weight (without stand) | 7.8 kg |
| Other features | |
| Certification | BSMI, CCC, CE, FCC Class A, UL, CB |
| SKU | 810080 |
| MPN | FPM-724W-P9AE |
| Brand | Advantech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | Business |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.advantech.com/en-au/ |
