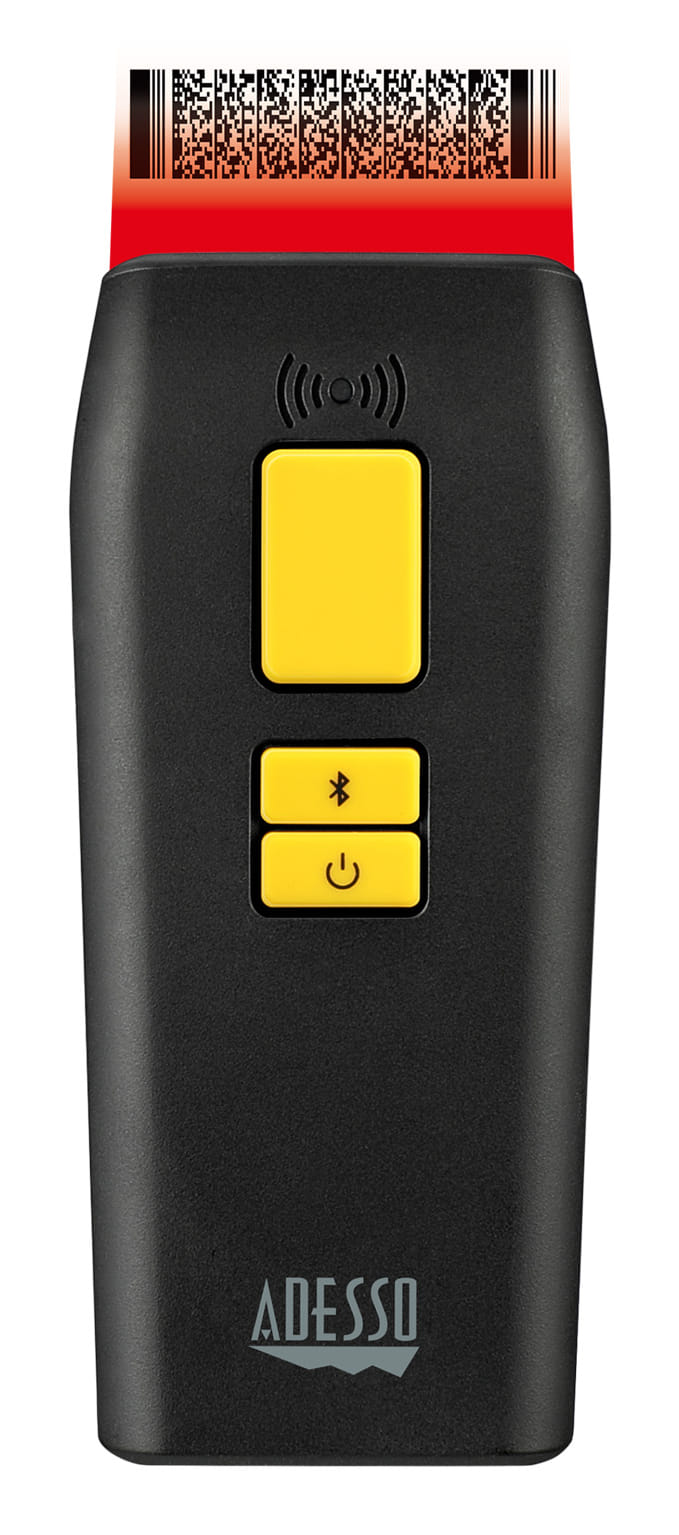

Adesso NUSCAN 3500, Handheld bar code reader, 1D/2D, CCD, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, GS1..., Data Matrix, Micro QR Code, PDF417, QR Code, 30.5 cm
Big things do come in small packages. Meet the Adesso NuScan 3500. This pocket sized barcode scanner weighs at just less than 3 ounces and connects to your mobile iOS/Android devices wirelessly through Bluetooth® or 2.4Ghz Wireless Technology. With its 2D sensor, the NuScan 3500 is capable of decoding majority of the 1D barcodes that are used in various industries such as QR COde, UPCs, EANs, Code 39, Code 128, Codabars, and much more. The antimicrobial substances used to manufacture the scanner help to keep away germs and viruses and rated at IP 66, this scanner is also waterproof, oilproof, and dustproof, making it a great scanning choice for industrial environments. Designed with durability in mind, the scanner has a rugged design that can withstand drops up to 10 feet. To increase its longevity, the scanner has a magnetic detachable cable where it snaps onto the scanner with ease to reduce damage to the connector port that are often caused by day-to-day connecting. Last but not least, the scanner is capable of scanning up to 300 scans per second and scanning barcodes up to 20 inches away, offering fast and accurate scanning results.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CCD |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, ISBN, ISSN, ITF-14, ITF-6, MSI-Plessey, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Data Matrix, Micro QR Code, PDF417, QR Code |
| Working distance | 30.5 cm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth, USB, Wireless LAN |
| Operating frequency The rate at which an electrical current alternates, usually measured in Hertz (Hz). Also the way to note a general location on the radio frequency spectrum such as 800 MHz, 900 MHz or 1900 MHz. | 2400 MHz |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Waterproof |
| Print contrast | 30% |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | USB |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 48.3 mm |
| Depth The distance from the front to the back of something. | 106.7 mm |
| Height The measurement of the product from head to foot or from base to top. | 25.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 84 g |
| Other features | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
 |
| SKU | 823061 |
| MPN | NUSCAN 3500 |
| Brand | Adesso |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.adesso.com/ |
