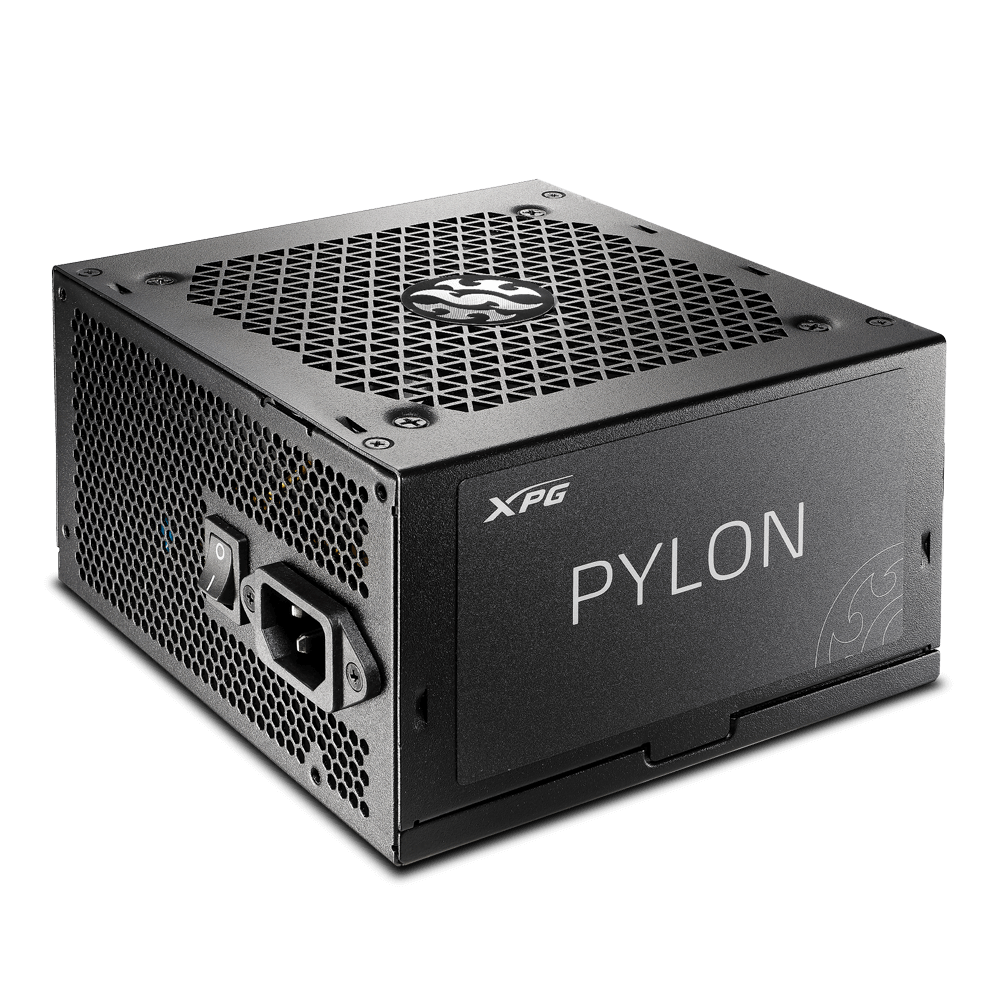

750W/ATX2.4/BLACK/80+ BRONZE/120mm FANS/CABLED-5YR WARR
| Model | PYLON750B-BKCAU |
| Dimensions (L × W × H) | 140 × 150 × 86 mm |
| Cybenetics Rating | 750W: SILVER |
| 80 Plus Rating | BRONZE |
| ATX Version | Intel ATX 12V V2.4 (Timing complies with ATX12V 2.52 guidelines) |
| Protections | OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP |
| Certification | CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC |
| PFC | 0.99 |
| Input Voltage | 100–240 V |
| Input Current | 750W: 10A |
| Input Frequency | 50–60 Hz |
| Operating Temperature | 50°C |
| Fan Size | 120 mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 2,000 RPM |
| MTBF | 100,000 hours at 25°C |
| ATX 24 Pin Connector | 1 |
| EPS 8 (4+4) Pin Connector | 1 |
| EPS 8 Pin Connector | 1 |
| PCI-E 6+2 Pin Connector | 4 |
| Molex 4 Pin Connector | 3 |
| SATA Connector | 8 |
| Weight | Product1/42.12kg (4.7lb) ±5% with Package1/42.63kg (5.8lb) ±5% |
| Warranty | 5 Years (3 years for units purchased before Jan 2022) |
| SKU | 831929 |
| MPN | PYLON750B-BKCAU |
| Brand | ADATA |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.adata.com/ |
