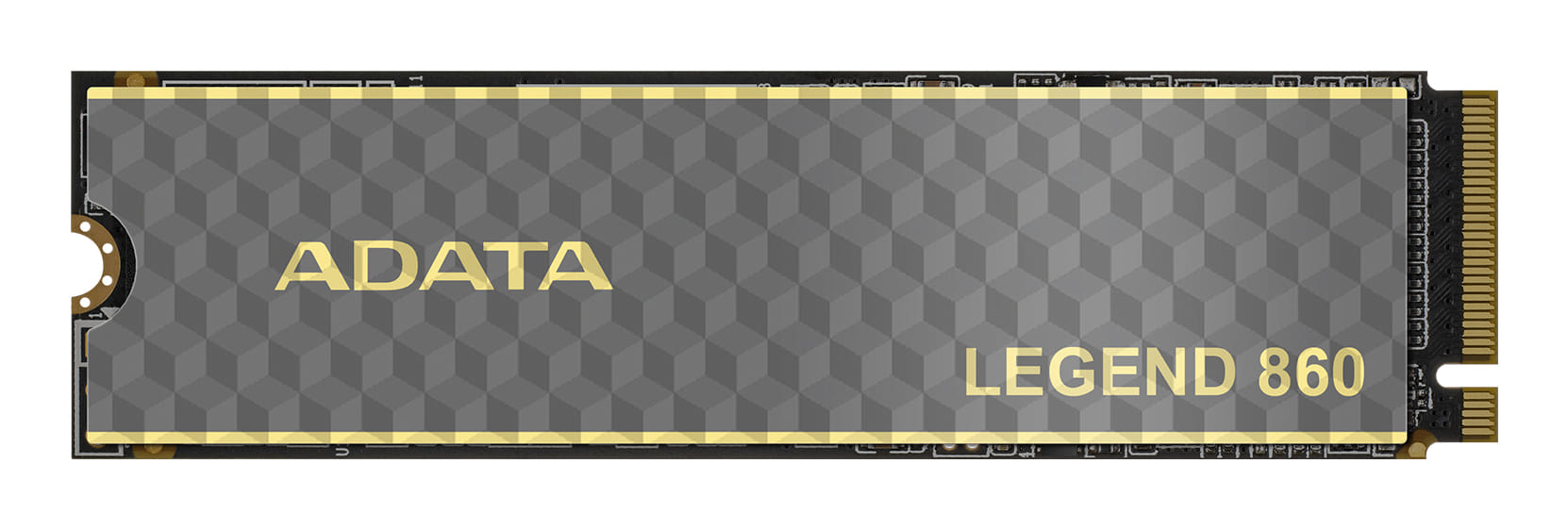

ADATA LEGEND 860 SLEG-860-1000GCS, 1 TB, M.2, 6000 MB/s
Imagine it, achieve it instantly
The LEGEND 860 boasts a sequential read/write speed of 6,000/5,000MB per second, 3 times faster than standard PCIe Gen3 SSDs and 10 times faster than SATA SSDs, and it is fully backward compatible with current PCIe 3.0 platforms. This drive provides excellent output for mid-to-high-end productions such as film and television animation, machine learning, and product modeling
Expand PS5 storage capacity
The LEGEND 860 utilizes a PCIe 4.0 transmission interface and can be installed in the PS5 as an expansion hard drive to alleviate PS5 storage insufficiency issues. Not only does the LEGEND 860 fit perfectly into the PS5'a drive slot, it also provides a smooth and no-lag gaming experience while enjoying triple A masterpieces.
Back up an entire resource library
Powerful performance no matter the file size. The LEGEND 860 is available in a spacious 2000GB capacity and utilizes a variety of data protection and correction technologies to greatly increase its Total Bytes Written volume (TBW) and durability to meet the needs of various storage applications.
Beyond Elite
LEGEND 860 utilizes a SLC cache algorithm and HMB (Host Memory Buffer) technology to take advantage of caching and adopts LDPC (Low Density Parity Check Code) error correction mechanism to ensure the accuracy of data transmission and file security.
5 Year Warranty for Peace of Mind
The LEGEND series of solid-state hard drives are constructed with carefully selected high-quality components which can withstand the test of time. Rigorously verified and tested, the LEGEND 860 comes with a 5-year warranty to provide you with peace of mind
SSD Toolbox value-added software for real-time status monitoring
SSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
The LEGEND 860 boasts a sequential read/write speed of 6,000/5,000MB per second, 3 times faster than standard PCIe Gen3 SSDs and 10 times faster than SATA SSDs, and it is fully backward compatible with current PCIe 3.0 platforms. This drive provides excellent output for mid-to-high-end productions such as film and television animation, machine learning, and product modeling
Expand PS5 storage capacity
The LEGEND 860 utilizes a PCIe 4.0 transmission interface and can be installed in the PS5 as an expansion hard drive to alleviate PS5 storage insufficiency issues. Not only does the LEGEND 860 fit perfectly into the PS5'a drive slot, it also provides a smooth and no-lag gaming experience while enjoying triple A masterpieces.
Back up an entire resource library
Powerful performance no matter the file size. The LEGEND 860 is available in a spacious 2000GB capacity and utilizes a variety of data protection and correction technologies to greatly increase its Total Bytes Written volume (TBW) and durability to meet the needs of various storage applications.
Beyond Elite
LEGEND 860 utilizes a SLC cache algorithm and HMB (Host Memory Buffer) technology to take advantage of caching and adopts LDPC (Low Density Parity Check Code) error correction mechanism to ensure the accuracy of data transmission and file security.
5 Year Warranty for Peace of Mind
The LEGEND series of solid-state hard drives are constructed with carefully selected high-quality components which can withstand the test of time. Rigorously verified and tested, the LEGEND 860 comes with a 5-year warranty to provide you with peace of mind
SSD Toolbox value-added software for real-time status monitoring
SSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
| Features | |
| NVMe version | 2.0 |
| SSD capacity The Solid State Drive's data storage capacity. | 1 TB |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 4.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D NAND |
| Component for What this product is used as a part of (component for). | PC/Notebook/Game console |
| Hardware encryption |
 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed The speed at which a device can read data. | 6000 MB/s |
| Write speed The speed at which a device can write data. | 4000 MB/s |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support |
|
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Low-density parity-check (LDPC) |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| TBW rating | 320 |
| Certification | morocco |
| Brand-specific features | |
| Brand specific technologies | SLC Caching |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 3.13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.5 g |
| Packaging data | |
| Package type The type of product package e.g. box. | Box |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1500 G |
| Other features | |
| Compliance certificates | BSMI, CE, EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, UKCA |
| SKU | 817203 |
| MPN | SLEG-860-1000GCS |
| Brand | ADATA |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.adata.com/ |
