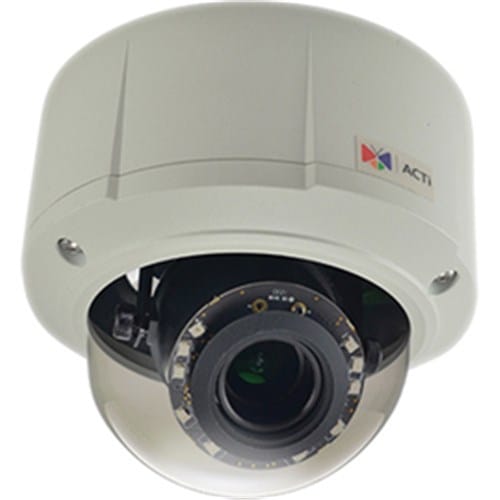

ACTi 5MP 1080P Outdoor Dome Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
PTZ modes	8 Tour, Preset point
PTZ protocols	Pelco-P/D
Tour recording
Preset points
People counting function
Wide Dynamic Range (WDR)
Day/night mode
Remote viewing
Infrared (IR) cut-off filter
Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Certification	CE, FCC, IP67, IK10, NEMA 4X, UL

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Ceiling/Wall/Pole
Product colour The colour e.g. red, blue, green, black, white.	Black, Transparent, White
Protection features Physical effects from which the product is protected e.g. water resistant, crash proof.	Vandal proof
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP67
IK code	IK10
Weatherproof

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.1 lx
Angle of rotation	175°
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	64.74°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	49.6°
Tilt angle range	5 - 175°
Pan range	-175 - 175°
White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly.	Auto, Manual
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/5 - 1/10000 s
Adjustment shutter speed	Auto/Manual

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3.2 mm (1 / 3.2")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS
Number of effective pixels (H x V)	2592 x 1944 pixels

Lens system
Zoom capability The amount that the camera lens can zoom.
Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.	4.3x
Auto focus Device focusing a camera or other piece of equipment automatically.
Maximum aperture number	4
Minimum aperture number The minimum size of the hole through which light enters a camera.	1.4
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	3.1 - 13.3 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	10
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2592 x 1944 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	5 MP
Video compression formats	H.264,M-JPEG
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	320 x 240,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2592 x 1944
Supported video modes The video modes that can be displayed by the device.	1080p
Frame rate	30 fps
Video streaming
Noise reduction
Noise reduction technology	Ultra 2D noise reduction, Ultra 3D noise reduction
3D NR (Noise Reduction)
Gain control type	Auto
Automatic gain control
Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
Image quality adjustment	Brightness, Contrast, Sharpness
Flip & mirror
Privacy masking
Time stamp overlay
Text caption overlay
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	28 Kbps - 6 Mbps
Digital Wide Dynamic Range (DWDR)
Region of Interest (ROI) encoding
Number of TV lines (horizontal)	1350

Audio
Audio system System used to play music or speech.	2-way
Audio input channels A channel is an electric circuit which acts as a path for a signal. Audio input channels allow audio signals to be communicated to the device.	1
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	1 channels
Sample rate	8 kHz
Voice codecs	G.711

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1x,IEEE 802.3af
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Streaming method	Multicast
E-mail

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSDHC,MicroSDXC

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Terminal block port

Security
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Password protection type	User
Video motion detection
Active tampering alarm
IP address filtering
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS
HTTPS encryption
Alert notification type	E-mail, Snapshot alert message, Text alert message
Privacy protection
Intelligent Video Surveillance (IVS) system features	Abandoned object, Crossing line, Face detection, Intrusion, People counting, Scene change
Anti-flicker
Heartbeat
Mirror
Digital watermark

Management features
Web-based management Using a website/web application to manage something.
Web browser
Firmware upgradeable
Reset button
Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals.
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Unattended baggage detection

Power
Power source type What the power source is.	PoE
Power consumption (Power over Ethernet (PoE))	7.28 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-30 - 50 °C
Operating relative humidity (H-H)	10 - 85%

Weight & dimensions
Height The measurement of the product from head to foot or from base to top.	131 mm
Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.	15.3 cm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.4 kg

Packaging content
Number of cameras The quantity of cameras that product can support.	1
