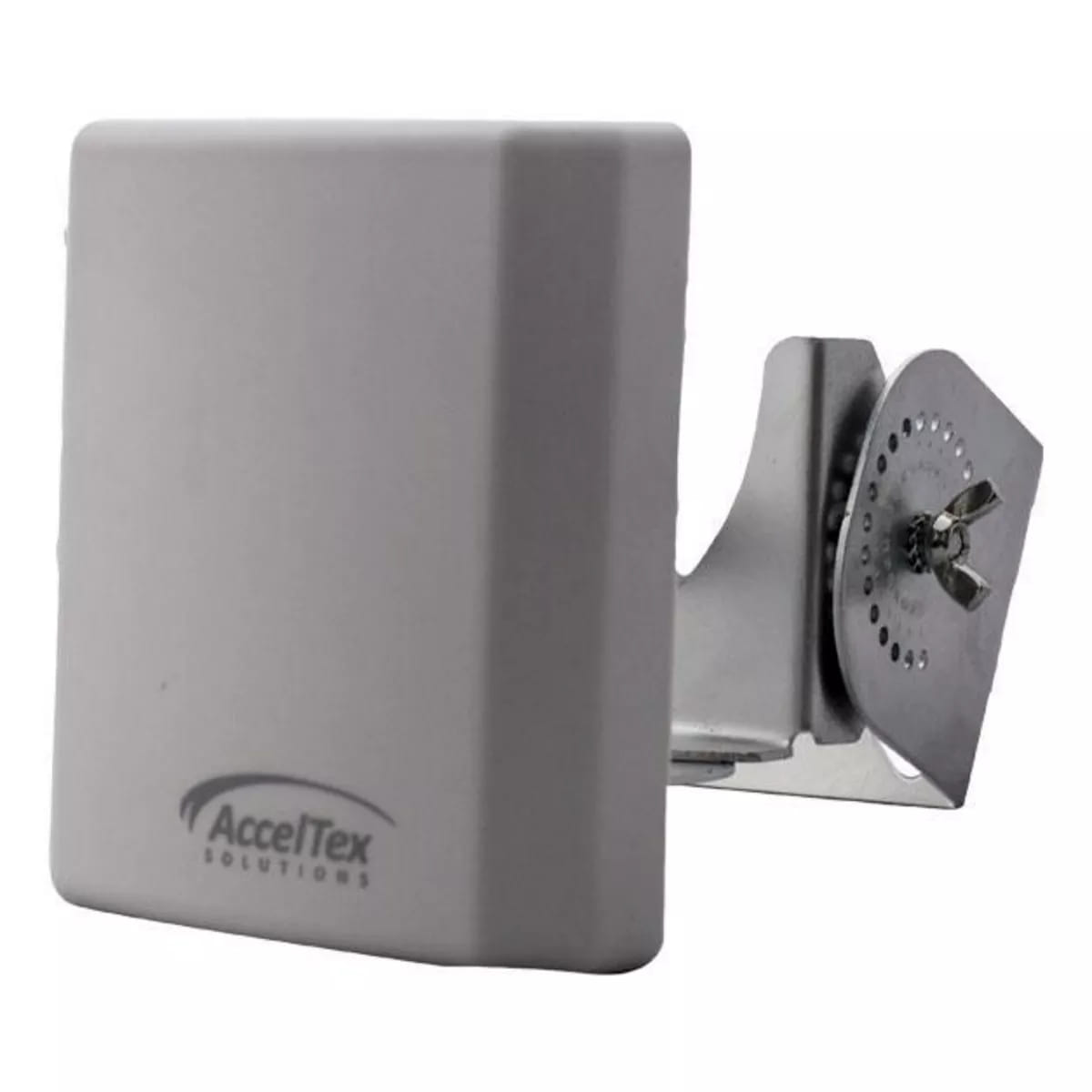

AccelTex Solutions ATS-OP-245-810-6NP-36-V2, 2.4 GHz, 5 GHz
ATS-03022 (former catalog number ATS-OP-245-810-6NP-36-V2). AccelTex Solutions High Gain 6 Element Dual Band Wi-Fi Indoor/Outdoor Patch Antenna with N-Style Plug connector is a perfect compliment to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| 6 GHz |
 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 100 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Antenna | |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 10 dBi |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | N-type |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177 mm |
| Depth The distance from the front to the back of something. | 207 mm |
| Height The measurement of the product from head to foot or from base to top. | 46 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 400 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 65 °C |
| SKU | 810958 |
| MPN | ATS-OP-245-810-6NP-36-V2 |
| Brand | Acceltex |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.acceltex.com/ |
