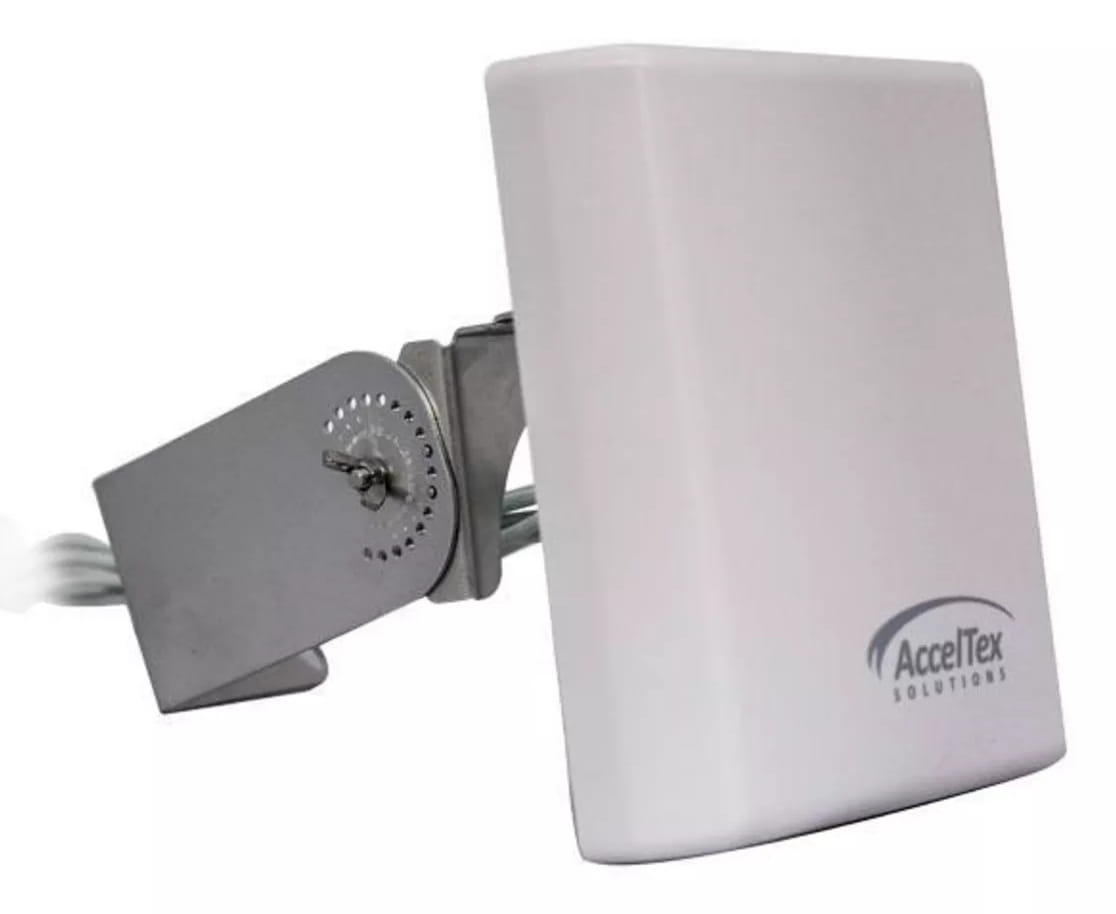

AccelTex Solutions 2.4/5 GHz 4/7 dBi 6 Element Indoor/Outdoor Patch Antenna with RPTNC, 7 dBi, 2.4-2.5/4.9-5.85 GHz, 4 / 7 dBi, 50 Ohms, 76Deg, 78Deg
ATS-01106 (former catalog number ATS-OP-245-47-6RPTP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4-2.5/4.9-5.85 GHz |
| Gain | 4 / 7 dBi |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Horizontal beam width | 76° |
| Vertical beam width | 78° |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 7 dBi |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-TNC |
| Polarization | Vertical polarization |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Acrylonitrile styrene acrylate (ASA) |
| Survival wind speed | 210 km/h |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Wall/Pole |
| Purpose What the product is used for. | Indoor & outdoor |
| Isolation | 20 dB |
| Compatible products Other products that can be used with this product. | Cisco MR46E |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 100 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 205.7 mm |
| Depth The distance from the front to the back of something. | 177.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 45.7 mm |
| SKU | 819825 |
| MPN | ATS-01106 |
| Brand | Acceltex |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.acceltex.com/ |
