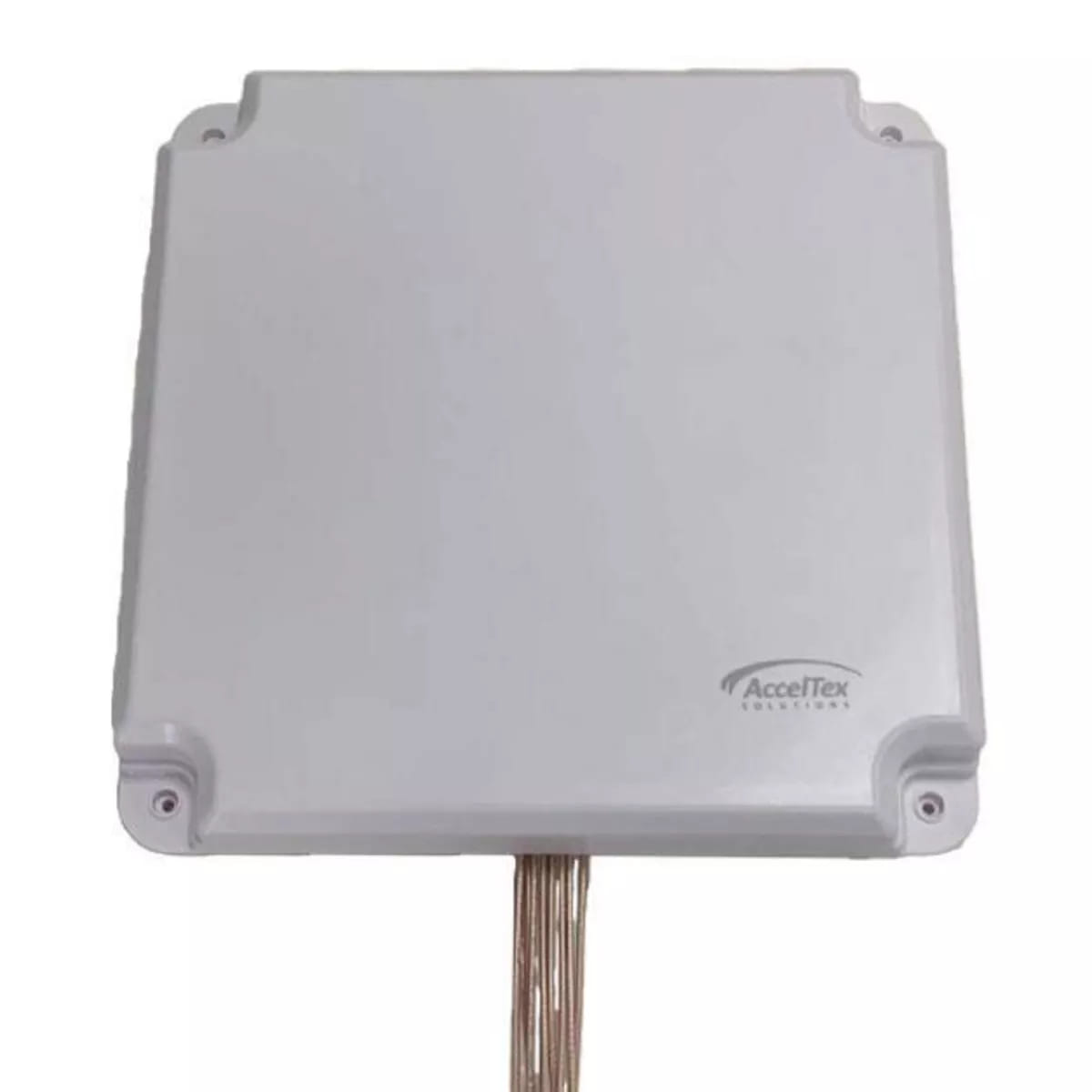

AccelTex Solutions 2.4/5/6 GHz 8/10/10 dBi 10 Element Indoor Patch Antenna with 10 MPC, 10 dBi, 2.4-2.48/5.15-5.85/6-7.125 GHz, 8 dBi, 10 dBi, 65Deg, 65Deg
ATS-02626 (former catalog number ATS-OP-2456-81010-10MPC-36). The AccelTex Solutions Tri-Band 10-Element indoor directional patch antenna with 4MPC and 6 MPC connectors is compatible with the Mist AP45E to achieve desired coverage in your indoor. Each antenna element is optimized for operation on 2.4, 5 and 6 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor applications. The Juniper/Mist AP45E-WW is approved in most countries. Please check with Juniper/Mist directly to verify regulations in your specific area. Contact Juniper/Mist
The AP45E-US is now shipping in the U.S. with the 6 GHz band disabled at launch.
The AP45E-US is now shipping in the U.S. with the 6 GHz band disabled at launch.
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4-2.48/5.15-5.85/6-7.125 GHz |
| Antenna gain (2.4 GHz) | 8 dBi |
| Antenna gain (5 GHz) | 10 dBi |
| Horizontal beam width (2.4 GHz) | 65° |
| Vertical beam width (2.4 GHz) | 65° |
| Horizontal beam width (5 GHz) | 45° |
| Vertical beam width (5 GHz) | 45° |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 10 dBi |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6 (802.11ax) |
| Wi-Fi band The frequency bands the product features. | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | MPC |
| Polarization | Horizontal/Vertical polarization |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS) |
| Cable type Type of cable e.g. electicity cable, optical cable. | RG316 |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Wall/Pole |
| Purpose What the product is used for. | Indoor |
| Compatible products Other products that can be used with this product. | Mist AP45E |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 391.2 mm |
| Depth The distance from the front to the back of something. | 391.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 55.9 mm |
| SKU | 838207 |
| MPN | ATS-02626 |
| Brand | Acceltex |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.acceltex.com/ |
