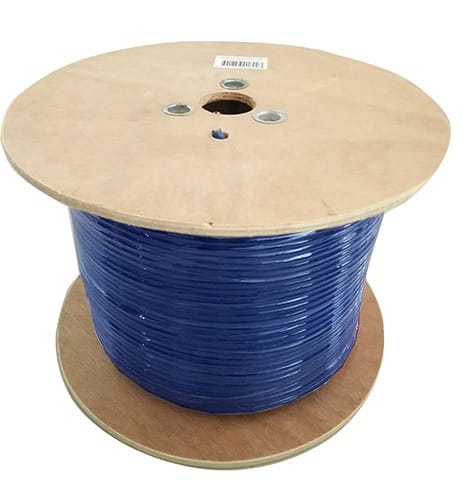

8Ware Cat6A Underground/External Shield Cable Roll 350m Blue Bare Copper Twisted Core PVC Jacket
CAT6A cables support networking at gigabit speeds and are backwards compatible with CAT5E cables. Colour coded blue for immediate and easy identification.
Item A
Conductor Construction(mm) 1/0.508±0.005
Material Bare Copper
Cabling OD (mm) 0.508
Insulation Material HDPE
OD(mm) 0.90±0.05
Avg. Thickness (mm) 0.18
Color 1ã€2ã€3ã€4
Cores Twisted Yes
Drain Construction(mm) -----
Material -----
Al Constructive Side -----
Overlap Rate -----
Mylar Overlap Rate -----
Assemble Cabling OD (mm) 5.00 (Ref.) + Filler
Mylar Overlap Rate -----
Al Constructive Side -----
Drain Construction(mm) -----
Material -----
Braid Construction(mm) -----
Material -----
Coverage -----
Jacket Material PVC (Bright)
OD(mm) 6.20±0.20
Avg. Thickness (mm) 0.6
Color BLUE (PVC001-6027)PT287C
Jet Print Color BLACK
Electrical Characters:
1. Voltage Rating: 30V Temperature Rating: 60℃
2. Dielectric Strength: AC-500V/MIN
3. Insulation resistance: 100M (OHMS * KM MIN at 20℃）
Physical Characters:
Test Object Jacket
| SKU | 451943 |
| MPN | CAT6A-EXT350BLUSH |
| Brand | 8Ware |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
