Product Description
Introduction
?

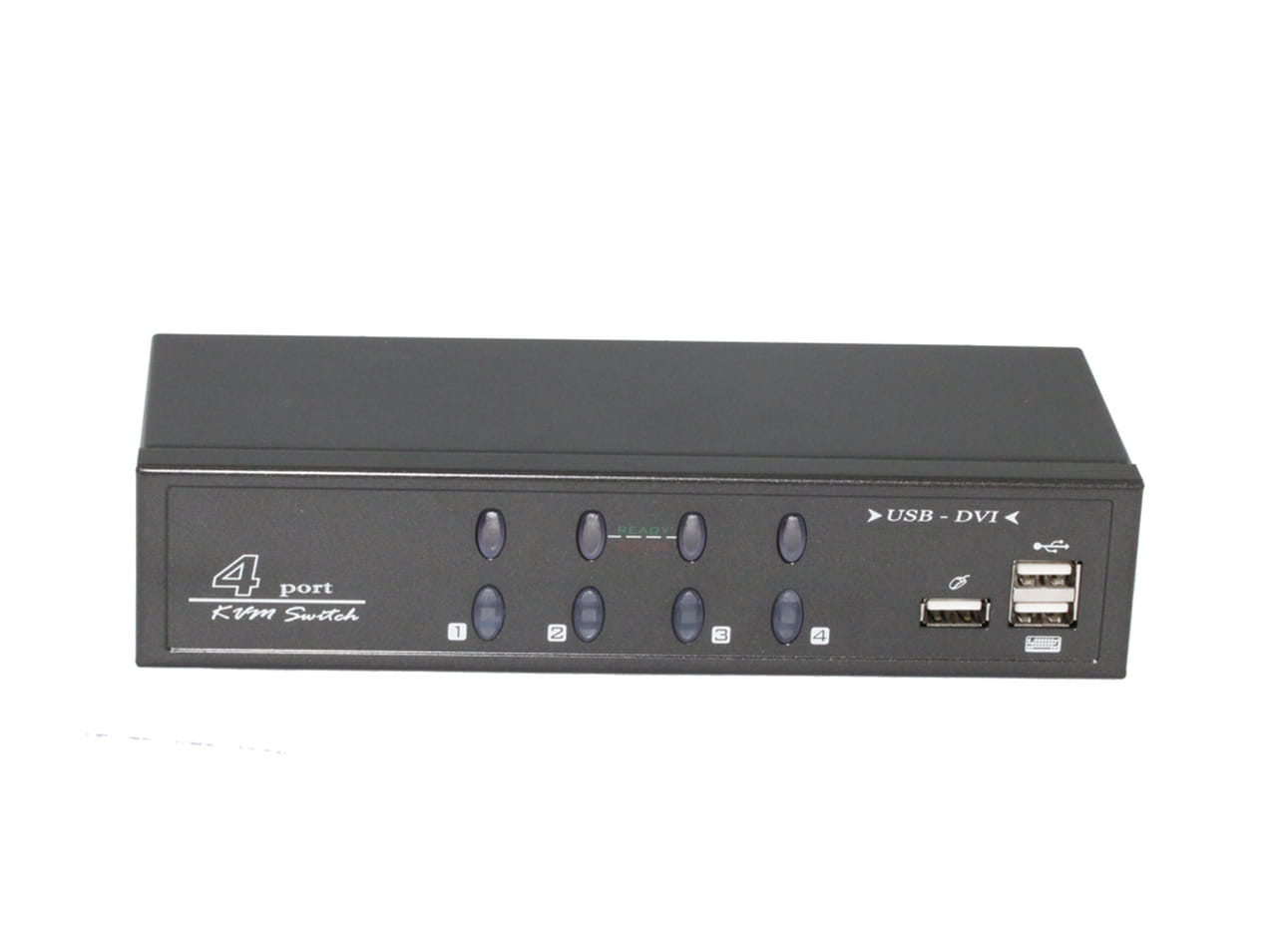

This DVI USB KVM Switch allows you to control up to 4 computers from one USB Keyboard, USB Mouse, DVI Monitors, Speaker and Microphone. Support both panel button and hot-key function to switch among computers.
?
Features
?
- Automatic KVM switch with DVI, Audio, and Mic.?
- Access 4 computers by one KVM switch.
- Consloe side connector: DVI*1, USB Type A*2, MD-6F*1.
- Fully USB V1.1 specification compliant.
- Support its driver-free and plug-n-play.
- MAX. resolution: 1920*1200
- Support Auto Scan Mode for users to monitor computers easily.
- Support both "panel button" and "hot key" to switch among computers.
- Support windows, macintosh, linux, freebsd, and sun system.
?
Specifications
Function | Specification | |||||||||||
Description | 4 PCs to 1 User | |||||||||||
PC side connector | DVI Female x 4 USB B Type x 4 3.5mm?Audio Jack x 8 | |||||||||||
Console side connector | DVI Female x 1 USB A Type x 2 MD-6F x 1 3.5mm?Audio Jack x 2 | |||||||||||
PC selection method | Hot Key/ Front Push Buttons | |||||||||||
Max. Resolution | DVI-A: 1920 x 1440 @ 60Hz DVI-D: 1920 x 1080 (1080p) | |||||||||||
Bandwidth | DVI-A: 250 MHz DVI-D: 200 MHz | |||||||||||
Housing / Color | Black-Silver Metal Case | |||||||||||
Case Weight | 0.64Kg | |||||||||||
Case Dimension | 200 x 80 x?43 mm | |||||||||||
Per packaging weight | 2.34Kg | |||||||||||
Per packaging Dimensions(mm) | 373 x 200 x?77 mm | |||||||||||
Packing per carton(q
|
